Electrolux EDSR1832AP 18-Inch True Flush Panel-Ready Dishwasher

Create a seamless built-in appearance in a compact kitchen with the Electrolux EDSR1832AP 18-inch panel-ready dishwasher. Its true-flush design allows the appliance to align with surrounding countertops and cabinetry when fitted with a compatible custom cabinet panel.

Inside, the premium stainless steel tall tub accommodates up to eight place settings. DishSense® Sensor Technology automatically adjusts cleaning performance according to the soil level of each load, while MaxDry™ uses heat and fan-assisted airflow to help remove moisture and improve drying results.

Key Features

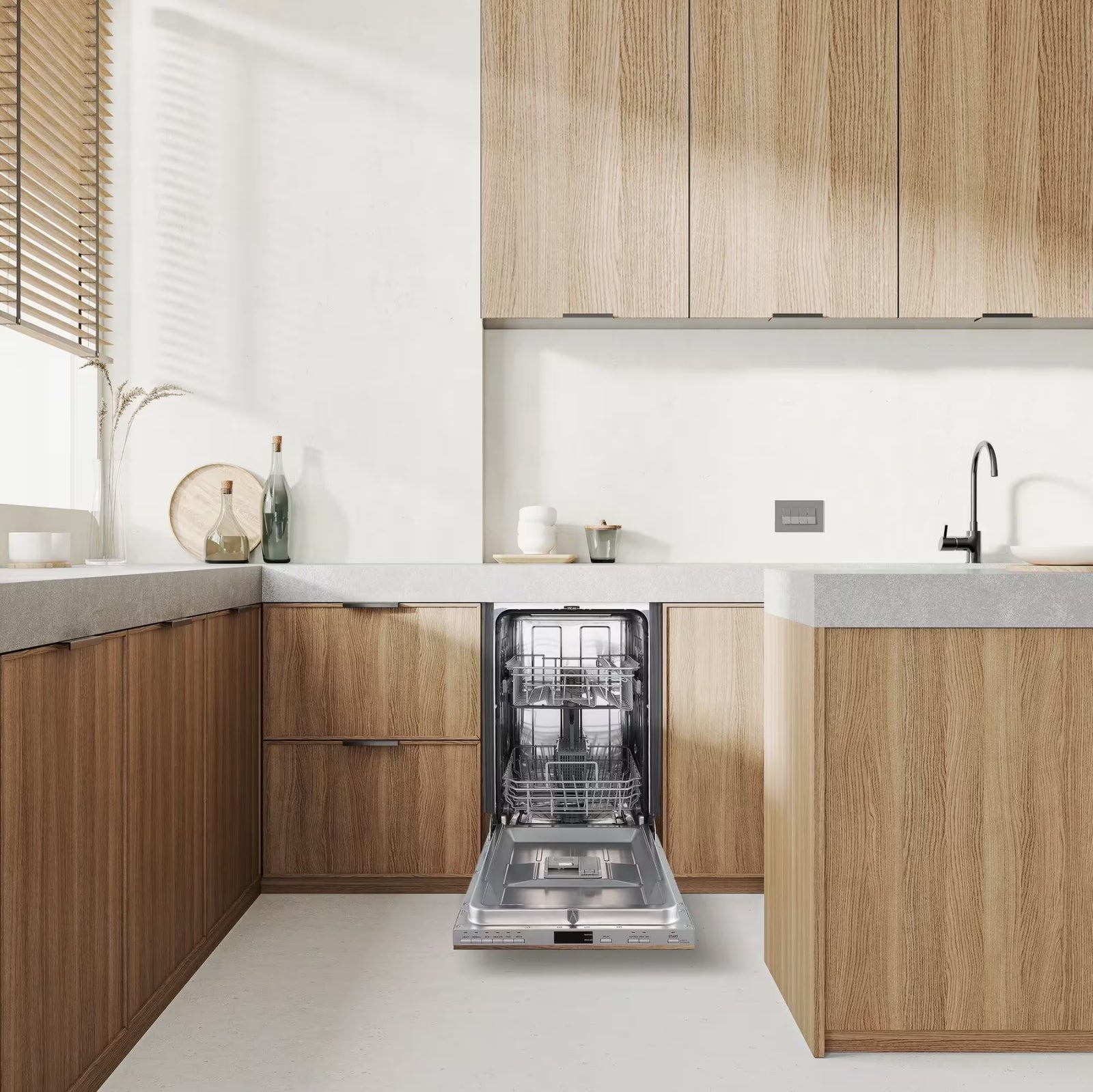

True Flush Panel-Ready Design

The dishwasher is designed to sit flush with surrounding cabinetry and countertops for an integrated appearance. A compatible custom cabinet panel is required and is not included.

DishSense® Sensor Technology

Sensor technology detects the soil level of the dishes and automatically adjusts cleaning performance to suit each load.

Enhanced Drying with MaxDry™

MaxDry™ uses heat and fan-assisted airflow to push moist air out of the dishwasher and draw in fresh, dry air, helping reduce the need for hand drying.

Quiet 49 dBA Operation

Extra insulation helps keep dishwasher noise to 49 dBA, allowing it to operate with minimal disruption to conversations, television and nearby living spaces.

Premium Stainless Steel Tub

The durable stainless steel interior offers a sleek appearance while resisting stains and odours.

NSF® Certified Sanitize Option

The Sanitize option removes 99.9% of common household bacteria and meets applicable NSF® testing standards.

Eight-Place-Setting Capacity

The compact tall-tub interior accommodates dishes, glassware and cutlery for up to eight place settings in one cycle.

60-Minute Quick Wash

Clean dishes in as little as one hour with the convenient Quick Wash cycle.

Six Wash Cycles

Choose from China Crystal, Energy Saver, Heavy, Normal, Quick and Rinse Only cycles to suit different dishes and cleaning requirements.

12-Hour Delay Start

Schedule the dishwasher to begin washing from one to 12 hours later, allowing the cycle to run at a more convenient time.

StayPut Door

The door remains open at the selected angle, helping make loading and unloading easier while reducing sudden door movement.

Digital Display

The integrated digital display provides clear cycle and setting information.

Rinse Aid Indicator

The rinse aid indicator lets you know when the dispenser needs to be refilled to support improved drying performance.

ENERGY STAR® Certified

ENERGY STAR® certification helps maximise energy efficiency and reduce operating costs compared with less-efficient dishwasher models.

Dishwasher Specifications

• Installation type: Built-in
• Configuration: True-flush panel ready
• Place-setting capacity: 8
• Wash levels: 4
• Wash system: Direct Feed
• Smart soil sensor: Yes
• Detergent dispenser: Yes
• Rinse aid dispenser: Yes
• Filter material: Stainless steel
• Filter trap: Removable
• Tub design: Tall tub
• Tub material: Stainless steel
• Tub colour: Stainless steel

Wash System

• Middle spray arm: Bi-beam
• Lower spray arm: Bi-beam
• Wash levels: 4

Wash Cycles

• China Crystal
• Energy Saver
• Heavy Wash
• Normal Wash
• 60-Minute Quick Wash
• Rinse Only

Dishwasher Options

• MaxDry™
• Heated Dry
• NSF® Certified Sanitize
• One- to 12-Hour Delay Start

Drying System

• MaxDry™ Technology: Yes
• Fan-assisted drying: Yes
• Heated Dry: Yes

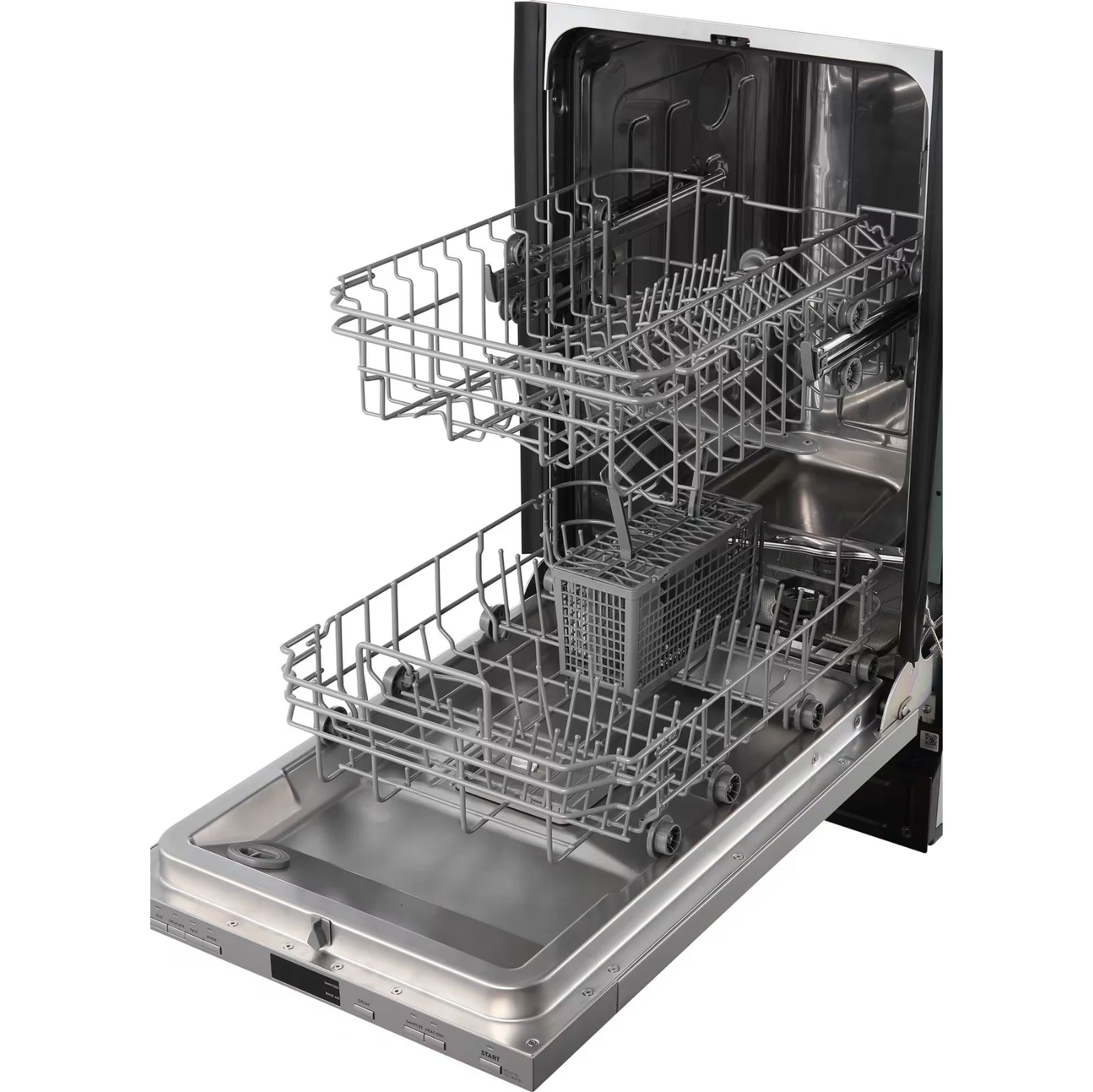

Rack Specifications

Upper Rack

• Rack coating: Nylon
• Cup shelf: Yes

Lower Rack

• Rack type: Standard
• Rack coating: Nylon
• Silverware baskets: 1
• Silverware basket lids: 1

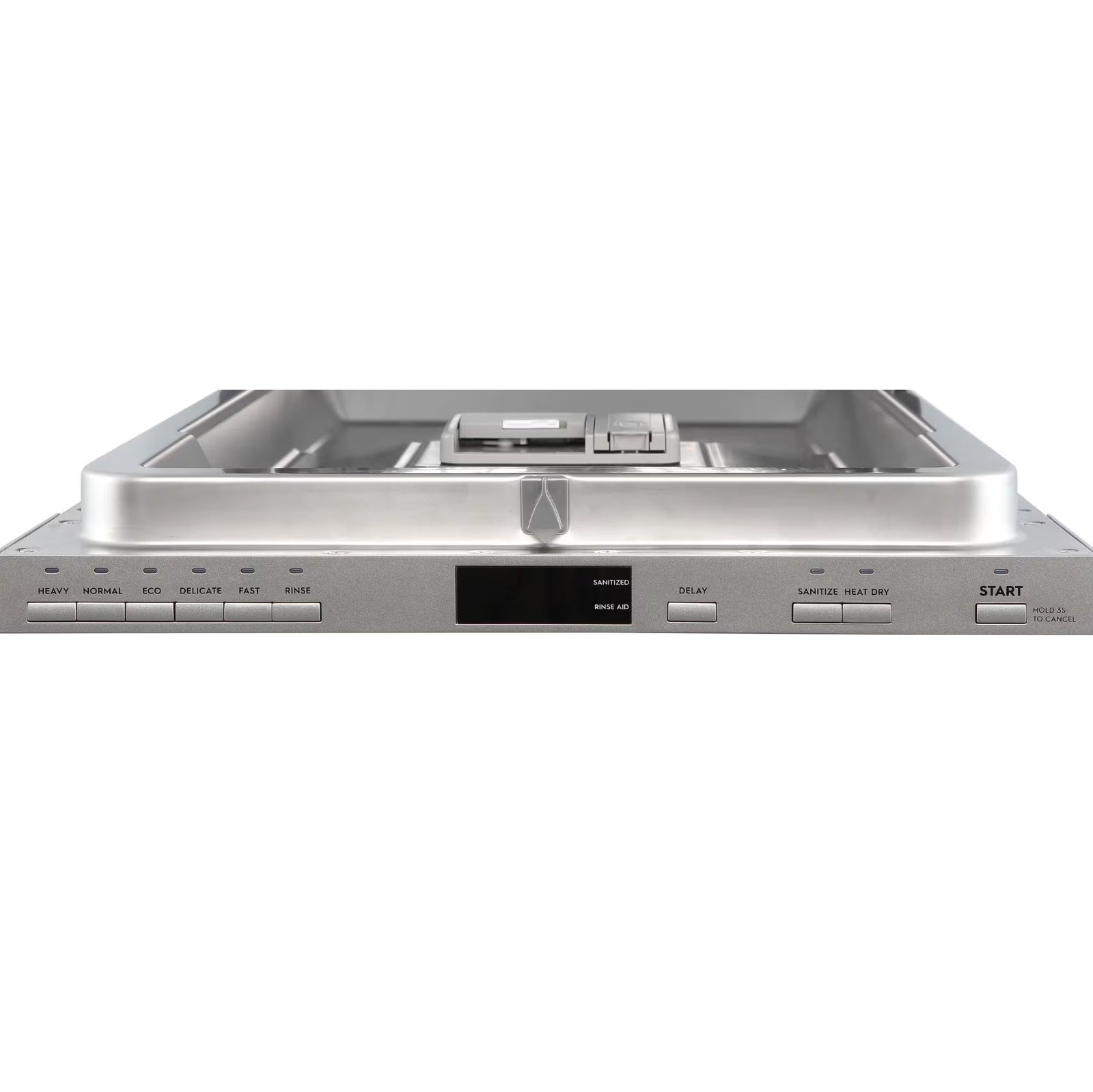

Controls

• Control location: Top
• Digital display: Yes
• Delay Start: 1 to 12 hours
• Rinse aid indicator: Yes

Product Dimensions

• Width: 17.64" (approximately 17 5/8")
• Depth: 21.7" (approximately 21 11/16")
• Depth with door open: 45 5/16"
• Minimum height: 32.48" (approximately 32 1/2")

Installation Opening

• Manufacturer-listed standard cutout height: 35"
• Manufacturer-listed standard cutout depth: 25"
• Manufacturer-listed standard cutout width: 24"

Because this is an 18-inch dishwasher, confirm the required cabinet-opening dimensions in the official installation guide before modifying cabinetry.

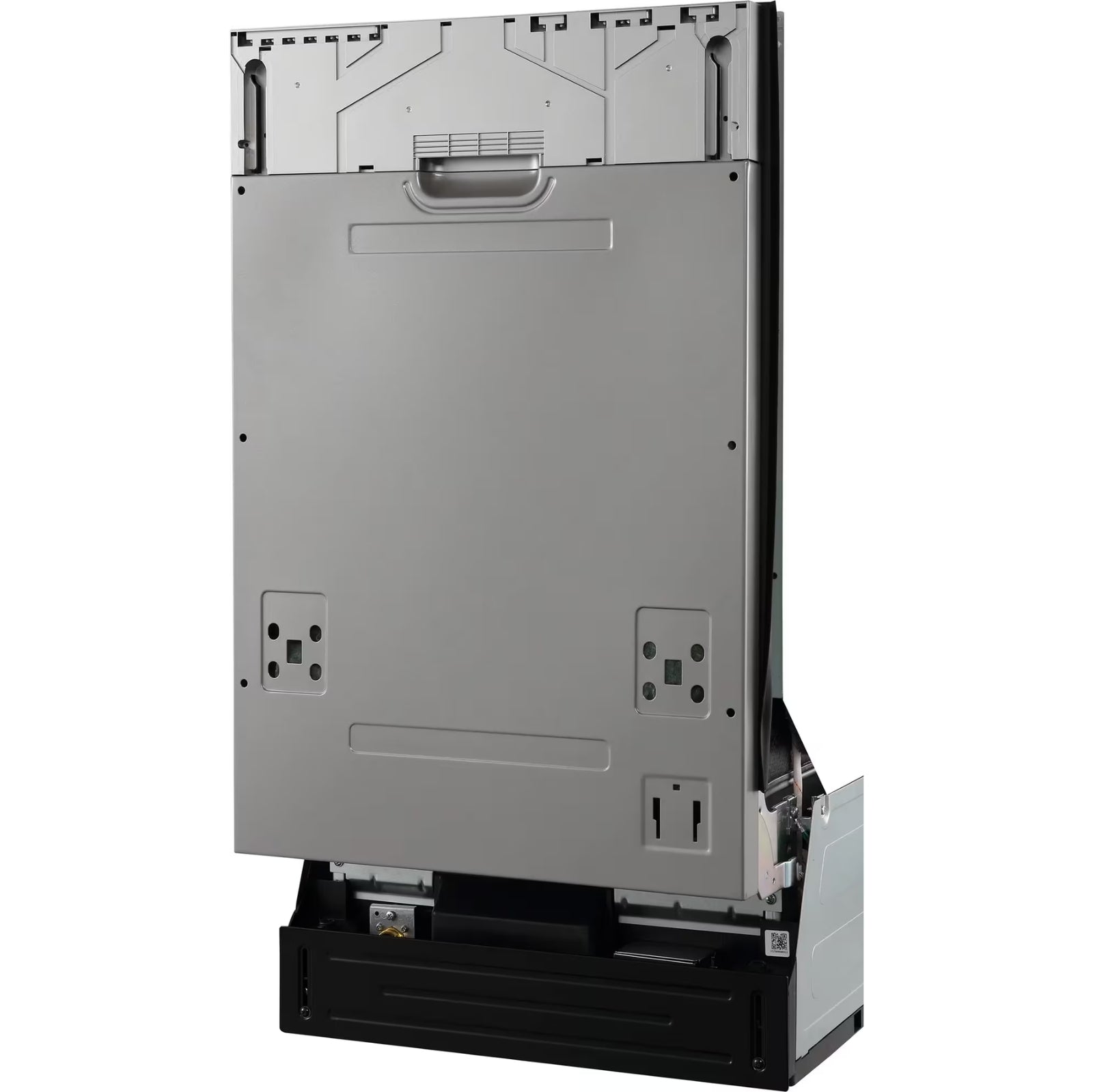

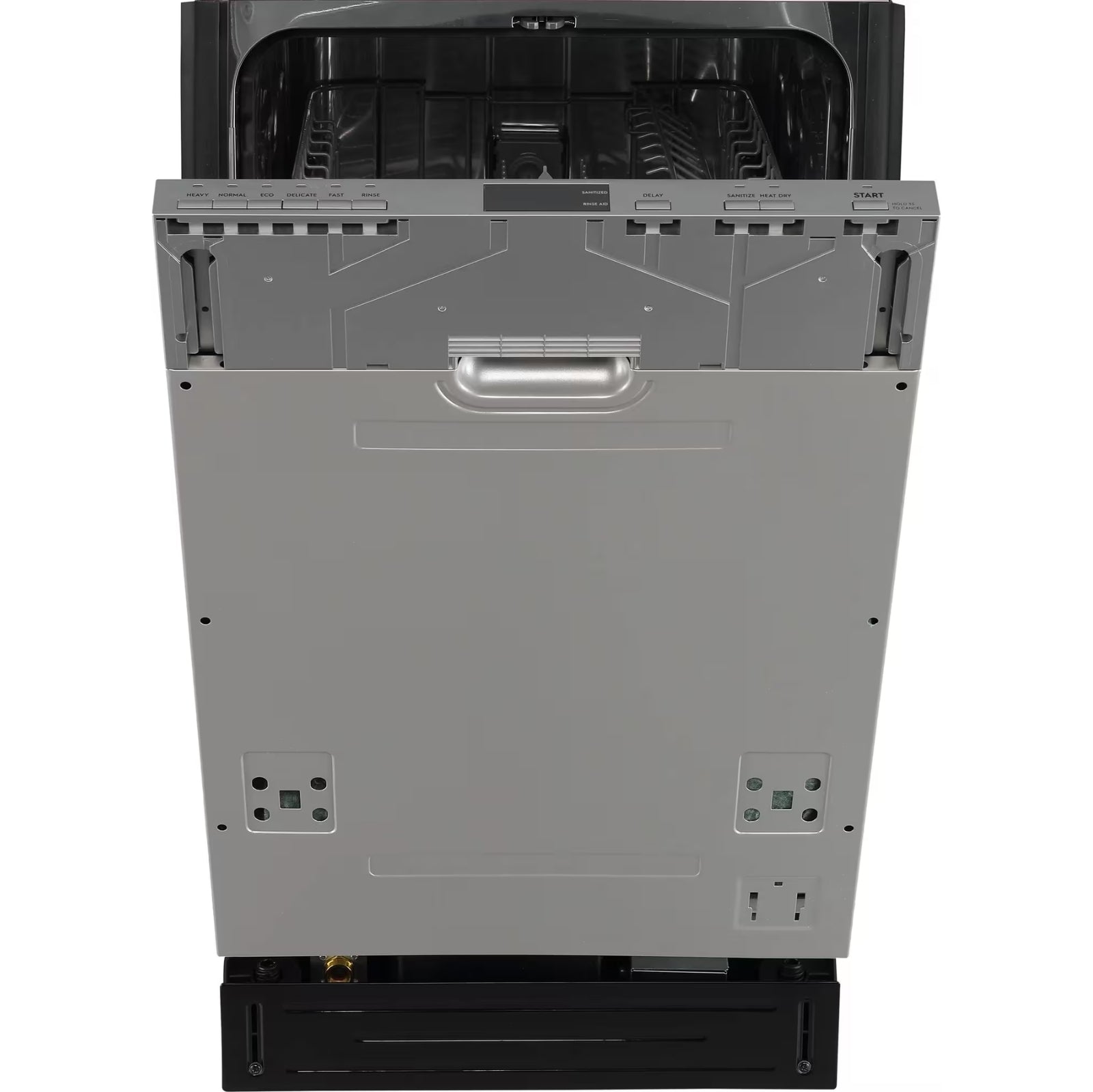

Custom Panel Requirements

• Custom panel included: No
• Panel width: 17.28" (approximately 17 9/32")
• Maximum panel height: 28.35" (approximately 28 3/8")
• Minimum panel thickness: 0.7"
• Minimum panel weight: 7.7 lb.
• Maximum panel weight: 11 lb.

Electrical Specifications

• Voltage: 120 V
• Amperage at 120 V: 6.67 amps
• Annual energy consumption: 240 kWh

Installation Specifications

• Connection location: Bottom right
• Water inlet location: Bottom left front
• Levelling legs: 4

Exterior Specifications

• Finish: Panel ready
• Door type: StayPut
• True-flush installation: Yes

Certifications and Additional Specifications

• Sound level: 49 dBA
• CEE tier: Tier 1
• ENERGY STAR® certified: Yes
• NSF® certified: Yes
• UL listed: Yes
• cUL listed: Yes
• ETL listed: Yes
• Meets ASSE 1006 requirements: Yes
• Product weight: 62 lb.
• Shipping weight: 71 lb.
• Country of origin: China
• Prop 65 label: Yes
• Parts warranty: 1 year
• Labour warranty: 1 year
• Right to repair: Partially available

Product Identification

• Brand: Electrolux
• Product line: Dishwasher
• Model: EDSR1832AP
• UPC: 012505116766
• GTIN: 00012505116766
