Frigidaire Gallery GDSH4715AF 24-Inch Built-In Dishwasher Stainless Steel

Experience powerful cleaning, flexible loading and enhanced drying with the Frigidaire Gallery GDSH4715AF 24-inch built-in dishwasher. Patented CleanBoost™ premix technology helps boost detergent performance for improved removal of tough, baked-on food, while the OrbitClean® Wash System delivers multidirectional water coverage throughout the dishwasher.

This premium model accommodates up to 14 place settings and includes an adjustable upper rack, a third-level rack and Target Spray Zones for difficult-to-clean items. MaxBoost Dry™, quiet 47 dBA operation, integrated top controls and a Smudge-Proof® stainless steel finish complete its refined design.

Key Features

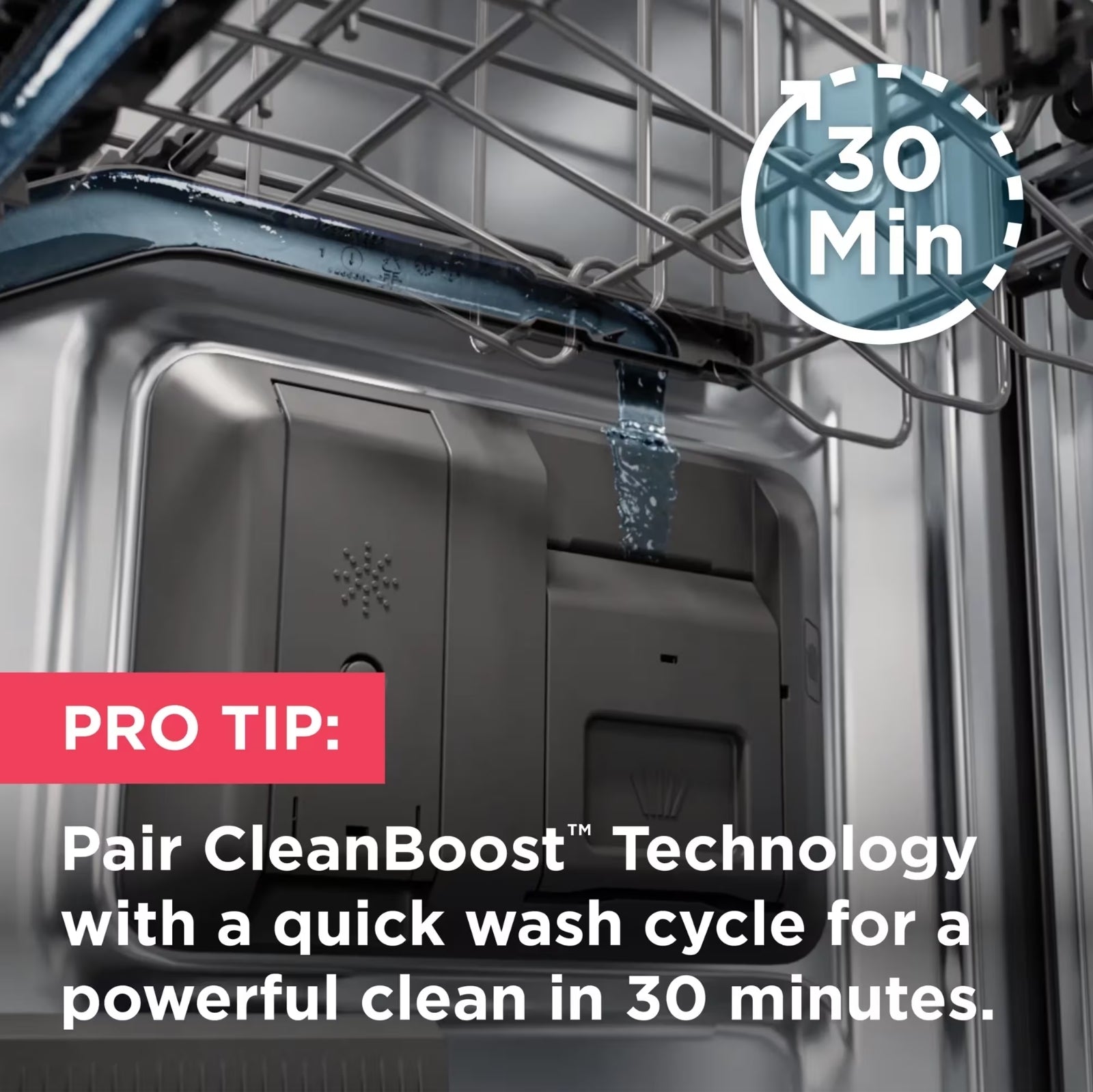

CleanBoost™ Premix Technology

Patented CleanBoost™ technology premixes water and detergent to amplify cleaning performance and help remove tough, baked-on food.

OrbitClean® Wash System

The rotating OrbitClean® lower wash arm uses multidirectional spray patterns to provide extensive water coverage without requiring additional water.

DishSense® Sensor Technology

The smart soil sensor detects how dirty the dishes are and automatically adjusts cleaning performance, helping reduce the need for pre-rinsing.

Target Spray Zones

Dedicated spray zones direct water toward hard-to-reach areas, helping remove stubborn residue from cookware, dishes and other heavily soiled items.

Enhanced Drying with MaxBoost Dry™

MaxBoost Dry™ uses heat and fan-assisted airflow to direct moisture out of the dishwasher and draw in fresh air for improved drying performance.

Powerful 30-Minute Fast Wash

Clean a load quickly with the convenient 30-minute Quick Wash cycle, ideal for busy schedules and lightly soiled dishes.

NSF® Certified Sanitize Option

The Sanitize option removes 99.9% of common household bacteria and meets applicable NSF® testing standards.

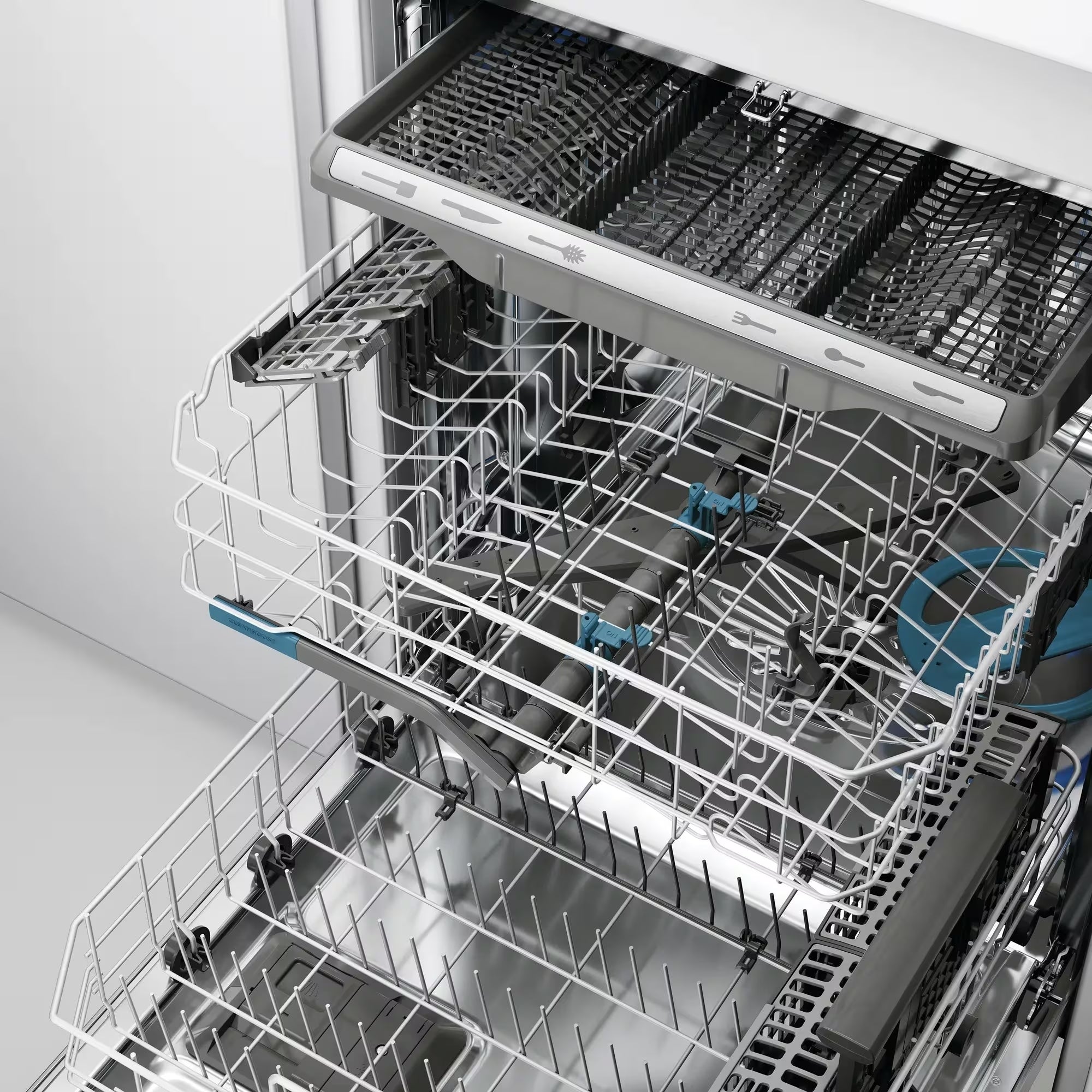

Third-Level Rack

The convenient third rack provides additional loading space for silverware, cooking utensils and small kitchen tools.

Adjustable Upper Rack

Adjust the upper rack height to create additional clearance for large dishes, cookware and bakeware in either rack.

Flexible Rack System

Fold-down tines, a cup shelf and a stemware holder provide flexible loading space for dishes and glassware of different shapes and sizes.

Seven Wash Cycles

Choose from China Crystal, Energy Saver, Favourite, Heavy, Normal, Quick and Sanitize cycles to accommodate a variety of cleaning needs.

Quiet 47 dBA Operation

Quality insulation helps keep dishwasher noise contained for quiet 47 dBA operation in open-concept kitchens and nearby living areas.

LED Status Indicator Floor Light

A convenient floor light shines blue while dishes are washing and changes to white when the cycle is complete.

Leak Detection System

If a leak is detected, a sensor stops the cycle and helps contain overflowed water in a tray at the bottom of the dishwasher.

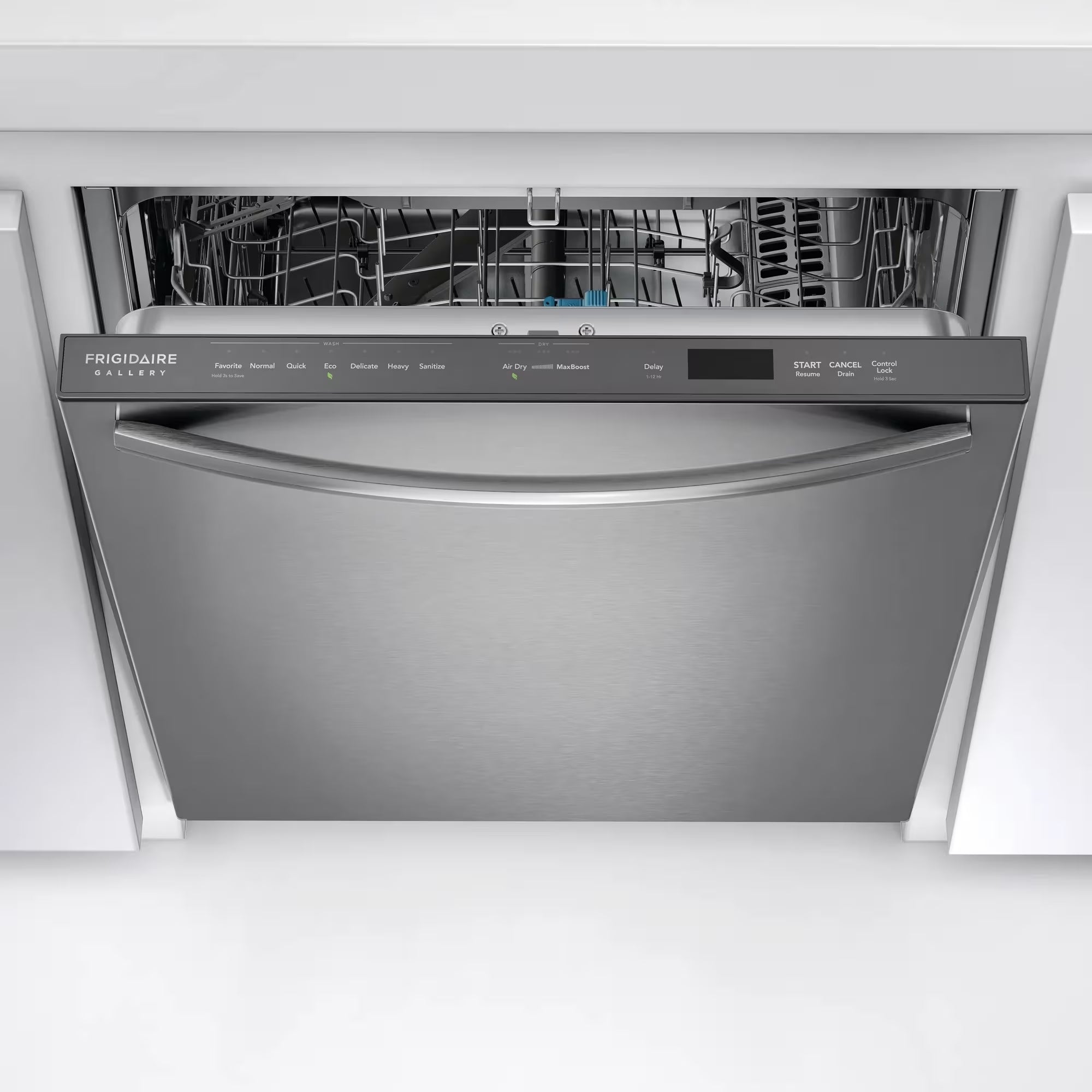

Premium Capacitive Touch Interface

The integrated capacitive multi-touch controls provide an intuitive way to select cycles and dishwasher options.

Digital Display

The integrated digital display provides clear cycle and setting information.

12-Hour Delay Start

Schedule the dishwasher to begin washing from one to 12 hours later, allowing the cycle to run at a more convenient time.

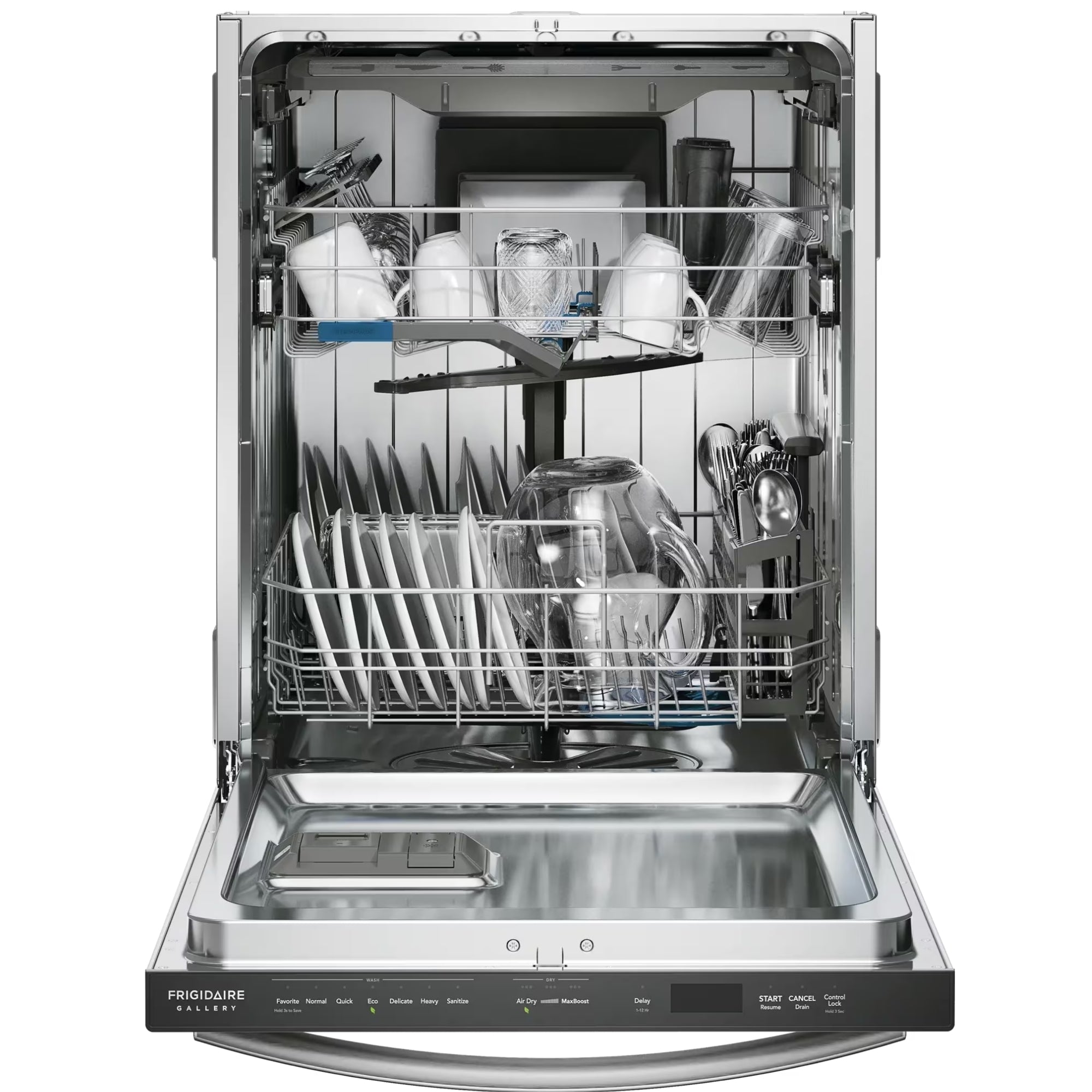

Cleans Up to 14 Place Settings

The stainless steel tall-tub interior accommodates up to 14 place settings in one cycle.

100% Filtered Wash Water

The filtration system helps remove food particles from circulating wash water to support cleaner results throughout the cycle.

Removable Stainless Steel Filter

The removable stainless steel filter provides convenient access for routine cleaning and maintenance.

StayPut Door

The dishwasher door remains open at the selected angle, making loading and unloading easier while reducing sudden door movement.

Potential Water Savings

Using the dishwasher instead of washing dishes under a running tap for 10 minutes each day may save more than 4,000 gallons of water annually.

ENERGY STAR® Certified

ENERGY STAR® certification helps maximise water and energy efficiency compared with less-efficient dishwasher models.

Smudge-Proof® Stainless Steel

The fingerprint-resistant stainless steel exterior cleans easily and helps maintain a polished kitchen appearance.

Made in Italy

This dishwasher is manufactured in Italy and combines modern engineering with premium cleaning and loading features.

Dishwasher Specifications

• Installation type: Built-in
• Place-setting capacity: 14
• Wash levels: 5
• Wash system: Direct Feed
• Filtered wash water: 100%
• Filtration system: Yes
• Filter material: Stainless steel
• Filter trap: Removable
• Smart soil sensor: Yes
• Leak detection system: Yes
• Motor: Multi-speed
• Detergent dispenser: Yes
• Rinse aid dispenser: Yes
• Interior light: No
• Tub design: Tall tub
• Tub material: Stainless steel
• Tub colour: Stainless steel

Wash System

• Upper spray system: Spray arm
• Middle spray arm: Bi-beam
• Lower spray arm: OrbitClean®
• Target Spray Zones: Yes
• CleanBoost™ premix technology: Yes

Wash Cycles

• China Crystal
• Energy Saver
• Favourite
• Heavy Wash
• Normal Wash
• 30-Minute Quick Wash
• Sanitize

Dishwasher Options

• Air Dry
• Heated Dry
• MaxBoost Dry™
• NSF® Certified Sanitize
• One- to 12-Hour Delay Start
• Start/Cancel
• Control Lock

Drying System

• Drying system: MaxBoost Dry™
• Fan-assisted drying: Yes
• Air Dry: Yes
• Heated Dry: Yes

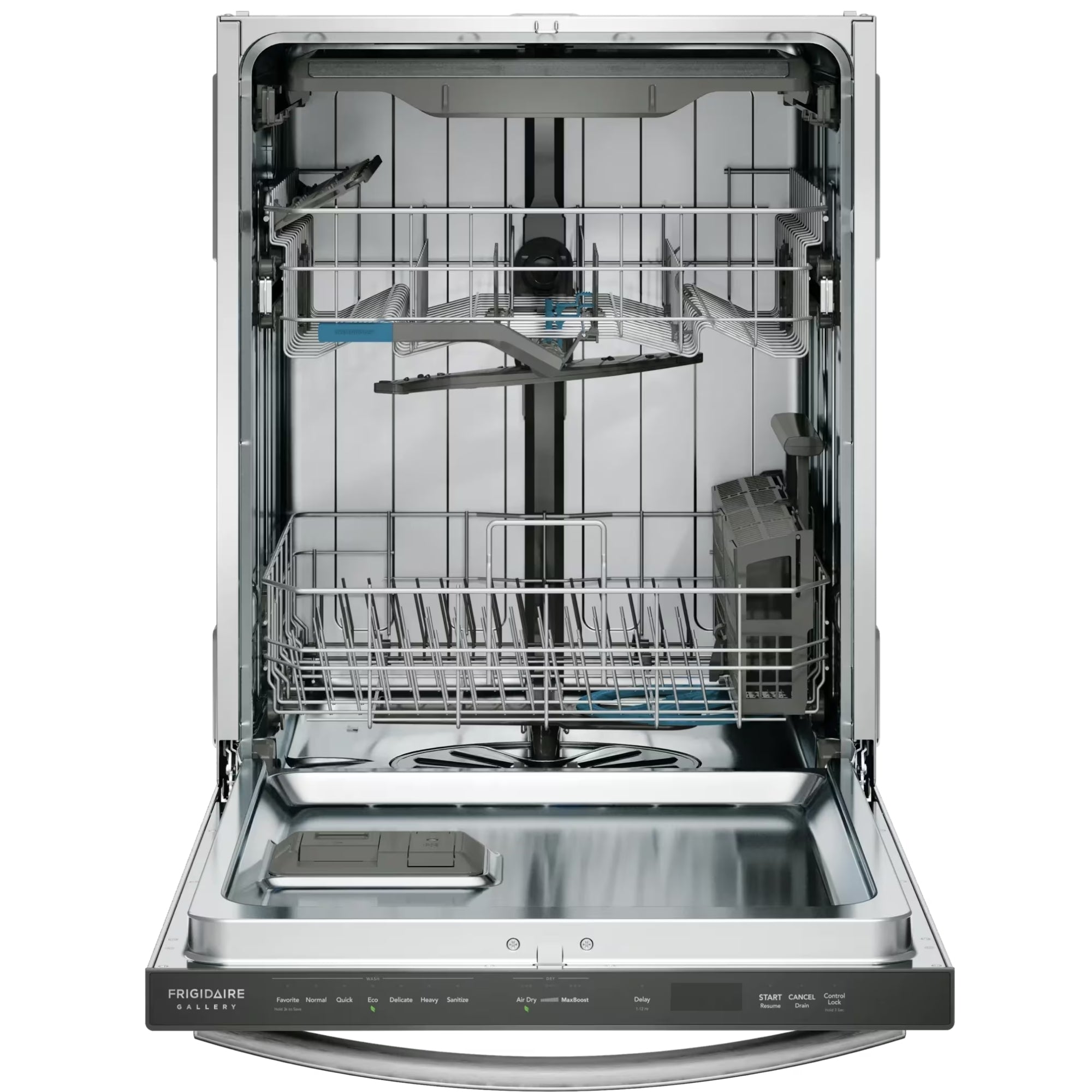

Rack Specifications

Third-Level Rack

• Third rack included: Yes
• Rack coating: Nylon
• Recommended use: Silverware, utensils and kitchen tools

Upper Rack

• Rack type: Adjustable
• Rack coating: Nylon
• Minimum height clearance: 8 1/2"
• Maximum height clearance: 10 3/8"
• Fold-down tines: Yes
• Cup shelf: Yes
• Stemware holder: Yes
• Targeted wash zone: Yes
• Rack handles: No

Lower Rack

• Rack type: Deluxe
• Rack coating: Nylon
• Minimum height clearance: 11 1/4"
• Maximum height clearance: 13 1/4"
• Fold-down tines: Yes
• Silverware baskets: 1
• Silverware basket lids: 2

Controls

• Control location: Top
• Control type: Capacitive multi-touch
• Control lock: Yes
• Digital display: Yes
• Delay Start: 1 to 12 hours
• Rinse aid indicator: Yes
• Status indicator floor beam: Yes

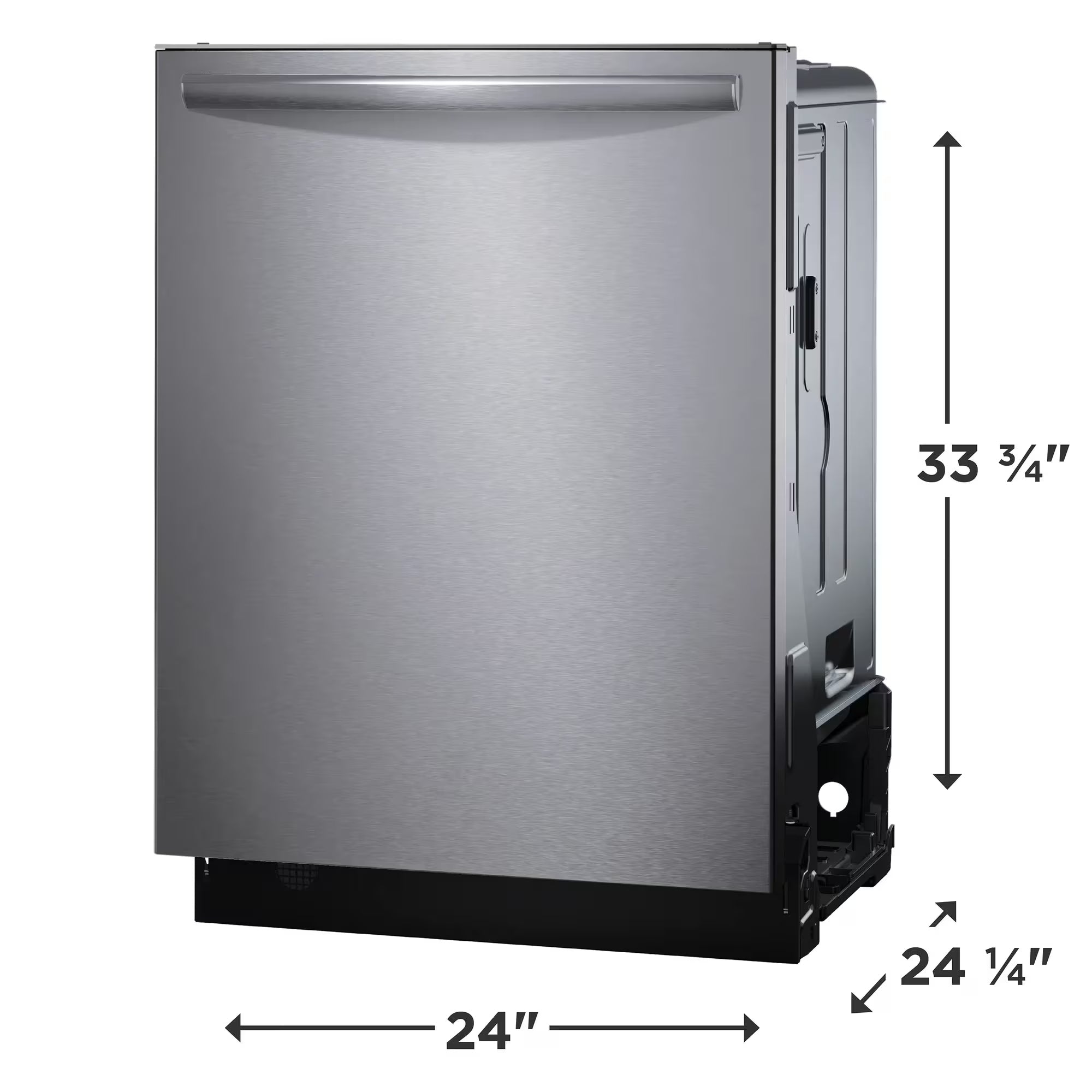

Dimensions

• Width: 24"
• Depth: 24 1/4"
• Depth with handle: Approximately 26 11/16"
• Depth with door open: 50 1/4"
• Minimum height: 33 3/4"
• Maximum height: 35 3/4"

Recommended Cutout Dimensions

• Cutout width: 24"
• Cutout depth: 25"
• Cutout height: 35"

Electrical Specifications

• Voltage: 120 V
• Amperage at 120 V: 15 amps
• Annual energy consumption: 240 kWh

Installation Specifications

• Connection location: Bottom right
• Water inlet location: Bottom left front
• Levelling legs: 3

Exterior Specifications

• Finish: Smudge-Proof® stainless steel
• Handle design: Bar handle
• Door type: StayPut
• Door latch: Pull latch
• Stay-put door: Yes

Certifications and Additional Specifications

• Sound level: 47 dBA
• CEE tier: Tier 1
• ENERGY STAR® certified: Yes
• NSF® certified: Yes
• UL listed: Yes
• cUL listed: Yes
• ETL listed: Yes
• Meets ASSE 1006 requirements: Yes
• Product weight: 85 lb.
• Shipping weight: 91 lb.
• Country of origin: Italy
• Prop 65 label: No
• Parts warranty: 1 year
• Labour warranty: 1 year
• Right to repair: Partially available

Product Identification

• Brand: Frigidaire Gallery
• Product line: Dishwasher
• Model: GDSH4715AF
• UPC: 012505116339
• GTIN: 00012505116339
