Frigidaire Gallery GDHH4527AF 24-Inch Dishwasher Stainless Steel

Bring powerful cleaning, flexible loading and improved drying performance to your kitchen with the Frigidaire Gallery GDHH4527AF 24-inch built-in dishwasher. The OrbitClean® Wash System uses a rotating lower wash arm with multidirectional spray patterns to provide extensive water coverage throughout the dishwasher.

DishSense® Sensor Technology automatically adjusts cleaning performance based on the soil level of each load, while MaxBoost™ Dry circulates heated air to help remove moisture. With room for up to 14 place settings, a FlexSlide upper tray, quiet 51 dBA operation and a Smudge-Proof® stainless steel finish, this dishwasher combines practical performance with a refined appearance.

Key Features

OrbitClean® Wash System

The rotating OrbitClean® lower wash arm uses multidirectional spray patterns to provide extensive water coverage throughout the dishwasher without requiring additional water.

DishSense® Sensor Technology

The smart soil sensor detects how dirty the dishes are and automatically adjusts cleaning performance to suit the load.

FlexSlide Upper Tray

The movable upper tray helps maximise available loading space and provides a convenient location for silverware, cooking utensils and small kitchen tools.

Enhanced Drying with MaxBoost™ Dry

MaxBoost™ Dry circulates heated air to push out moisture and draw in fresh, dry air, helping reduce the need for hand drying.

One-Hour Wash

Clean dishes in approximately one hour with the Quick Wash cycle. Add MaxBoost™ Dry for enhanced drying performance and cabinet-ready results.

Premium Stainless Steel Inner Door

The stainless steel inner door provides a sleek, durable and easy-to-clean surface that resists stains and odours.

Quiet 51 dBA Operation

Run the dishwasher with minimal disruption thanks to quiet 51 dBA performance, making it suitable for open-concept kitchens and nearby living areas.

Status Indicator Floor Beam

A convenient floor beam shines blue while the dishwasher is running and changes to white when the cycle is complete.

NSF® Certified Sanitize Option

The Sanitize option removes 99.9% of common household bacteria and meets applicable NSF® testing standards.

Overflow Detection System

The overflow detection system automatically stops the water supply if internal water levels become too high, helping protect the kitchen against potential leaks.

Removable Racks

Remove the racks when additional interior space is needed for oversized cookware, serving pieces and other large items.

Flexible Upper Rack

Fold-down tines and a rack spacer provide additional flexibility when loading bowls, cups and dishes of different sizes.

Fits Up to 14 Place Settings

The tall-tub interior accommodates up to 14 place settings in one cycle, making it suitable for everyday meals and larger household loads.

Four Wash Cycles

Choose from Energy Saver, Heavy, Normal and Quick cycles to match different dishwashing needs.

Energy Saver Cycle

The Energy Saver cycle uses less energy while maintaining effective everyday cleaning performance.

High-Temperature Wash

Increase the wash-water temperature for heavily soiled loads requiring enhanced cleaning performance.

Delay Start

Schedule the dishwasher to begin washing two, four or six hours later, allowing the cycle to run at a more convenient time.

Stay-Put Door

The dishwasher door remains open at the selected angle, helping make loading and unloading easier while reducing sudden door movement.

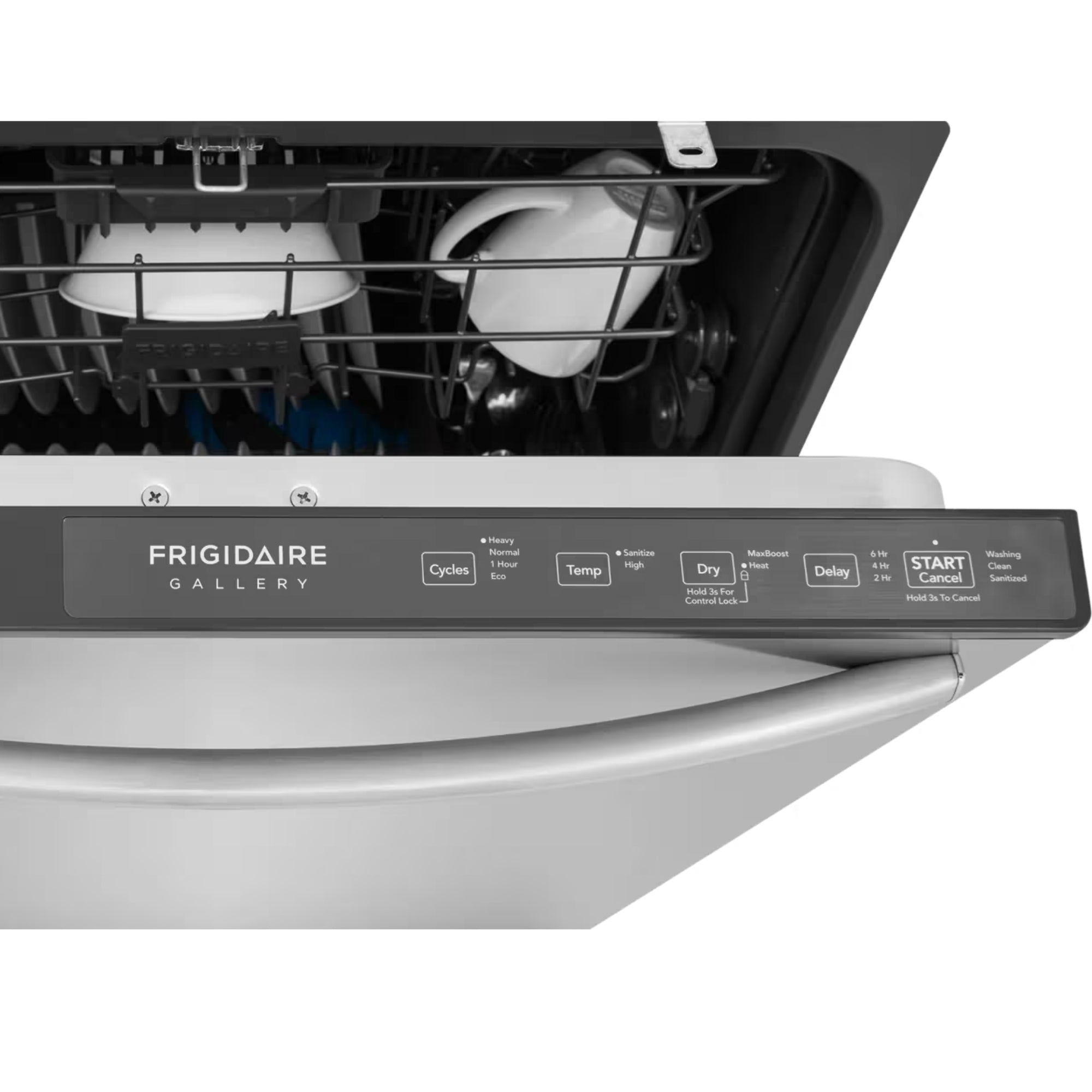

Fully Integrated Top Controls

Top-mounted controls remain concealed when the dishwasher door is closed, creating a clean and streamlined exterior.

Control Lock

Lock the controls to help prevent accidental setting changes or unintended operation.

Rinse Aid Indicator

The rinse aid indicator shows when the dispenser needs to be refilled to support improved drying performance.

Smudge-Proof® Stainless Steel

The exterior resists fingerprints and cleans easily, helping maintain a polished kitchen appearance.

ENERGY STAR® 7.0 Certified

ENERGY STAR® certification supports reduced water and energy consumption compared with less-efficient dishwasher models.

Dishwasher Specifications

• Installation type: Built-in
• Place-setting capacity: 14
• Wash levels: 5
• Wash system: Direct Feed
• Filtered wash water: 100%
• Filtration system: Yes
• Filter material: Plastic
• Filter trap: Removable
• Smart soil sensor: Yes
• Motor speed: Single-speed
• Detergent dispenser: Yes
• Rinse aid dispenser: Yes
• Interior light: No
• Tub design: Tall tub
• Tub material: Plastic
• Tub colour: Midnight Ink

Wash System

• Upper spray arm: Blade
• Middle spray arm: Bi-beam
• Lower spray arm: OrbitClean®
• Wash levels: 5

Wash Cycles

• Energy Saver
• Heavy Wash
• Normal Wash
• One-Hour Quick Wash

Dishwasher Options

• Heated Dry
• MaxBoost™ Dry
• High-Temperature Wash
• NSF® Certified Sanitize
• Two-, Four- or Six-Hour Delay Start
• Start/Cancel
• Control Lock

Drying System

• Drying system: MaxBoost™ Dry
• Heated Dry: Yes
• Heated-air circulation: Yes

Rack Specifications

FlexSlide Upper Tray

• Silverware tray included: Yes
• Movable design: Yes
• Recommended use: Silverware, utensils and kitchen tools

Upper Rack

• Rack type: Standard
• Rack coating: PVC
• Minimum height clearance: 8"
• Fold-down tines: Yes
• Rack spacer: Yes
• Rack handles: No

Lower Rack

• Rack type: Standard
• Rack coating: PVC
• Minimum height clearance: 11"
• Maximum height clearance: 13"
• Silverware baskets: 1
• Silverware basket lids: 2

Controls

• Control location: Top
• Control lock: Yes
• Delay Start: 2, 4 or 6 hours
• Rinse aid indicator: Yes
• Status indicator floor beam: Yes

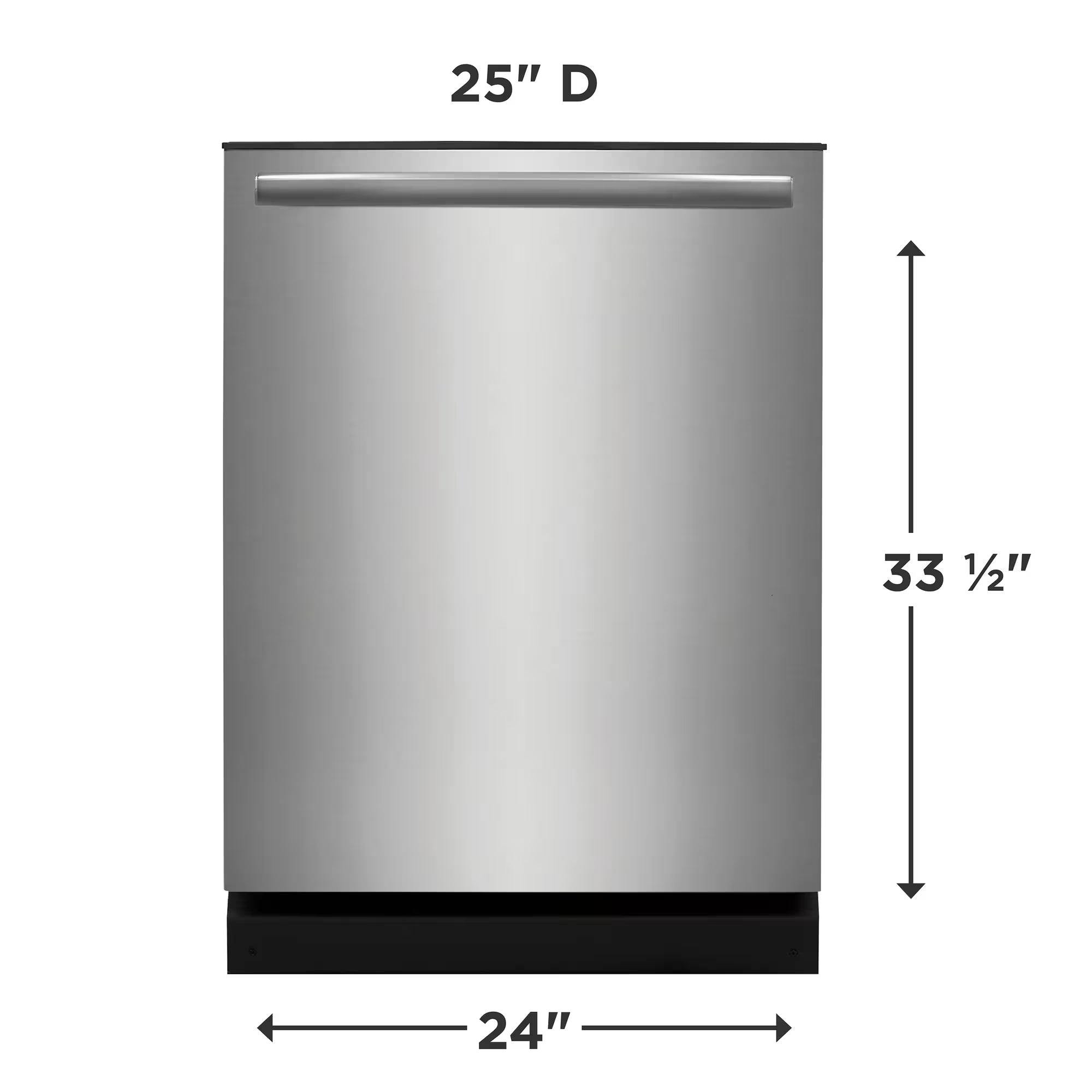

Dimensions

• Width: 24"
• Depth: 25"
• Depth with handle: 26 3/4"
• Depth with door open: 49 1/4"
• Minimum height: 33 1/2"
• Maximum height: 35"

Recommended Cutout Dimensions

• Cutout width: 24"
• Cutout depth: 25"
• Cutout height: 35"

Electrical Specifications

• Voltage: 120 V
• Amperage at 120 V: 10 amps
• Connected load at 120 V: 1.2 kW
• Annual energy consumption: 240 kWh

Installation Specifications

• Connection location: Bottom right
• Water inlet location: Bottom left front
• Levelling legs: 4

Exterior Specifications

• Finish: Smudge-Proof® stainless steel
• Handle design: Bar handle
• Door type: StayPut
• Door latch: Pull latch
• Stay-put door: Yes

Certifications and Additional Specifications

• Sound level: 51 dBA
• CEE tier: Tier 1
• ENERGY STAR® certified: Yes
• NSF® certified: Yes
• UL listed: Yes
• cUL listed: Yes
• ETL listed: Yes
• Meets ASSE 1006 requirements: Yes
• Product weight: 86 lb.
• Shipping weight: 91 lb.
• Country of origin: United States
• Prop 65 label: Yes
• Parts warranty: 1 year
• Labour warranty: 1 year
• Right to repair: Partially available

Product Identification

• Brand: Frigidaire Gallery
• Product line: Dishwasher
• Model: GDHH4527AF
• UPC: 012505116759
• GTIN: 00012505116759
