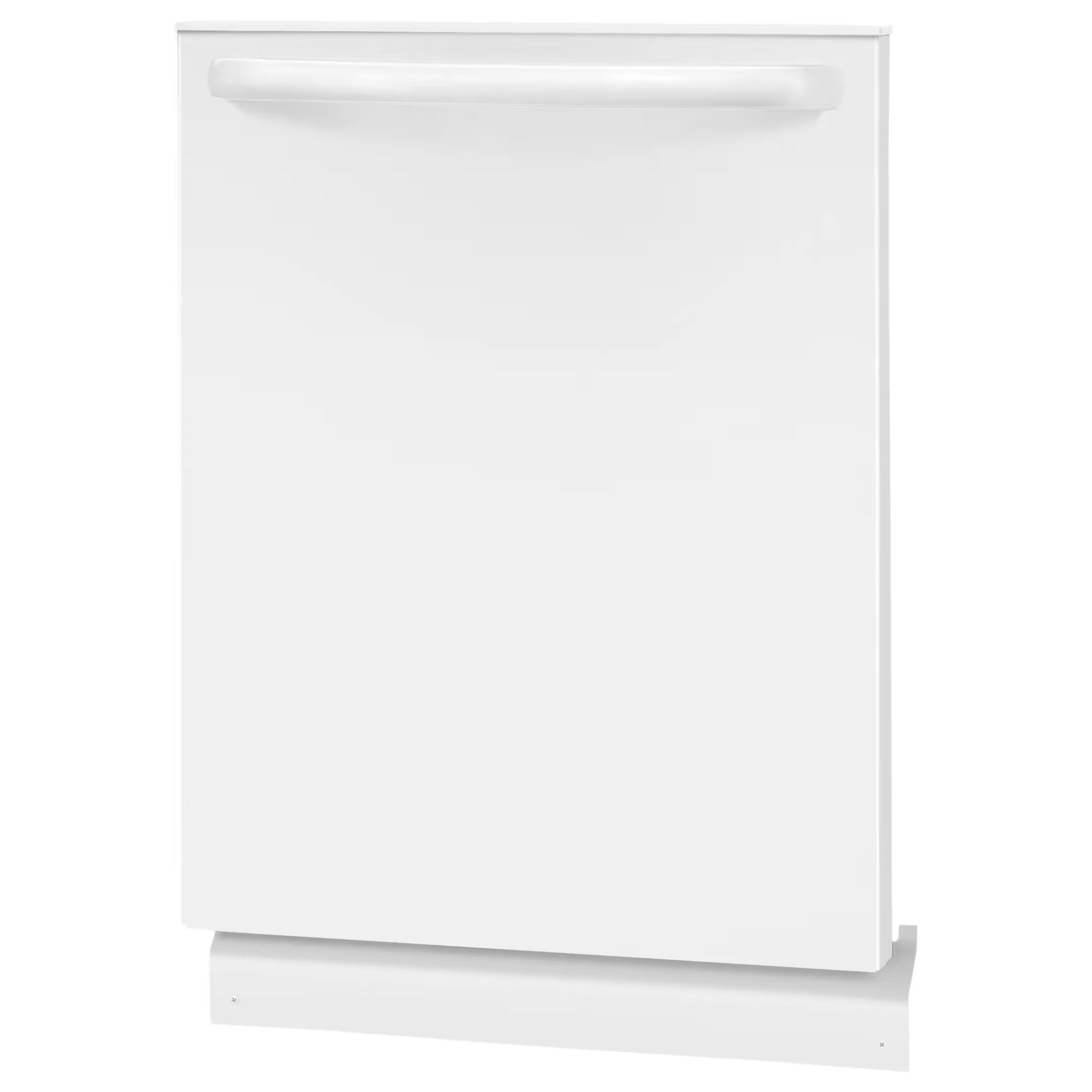

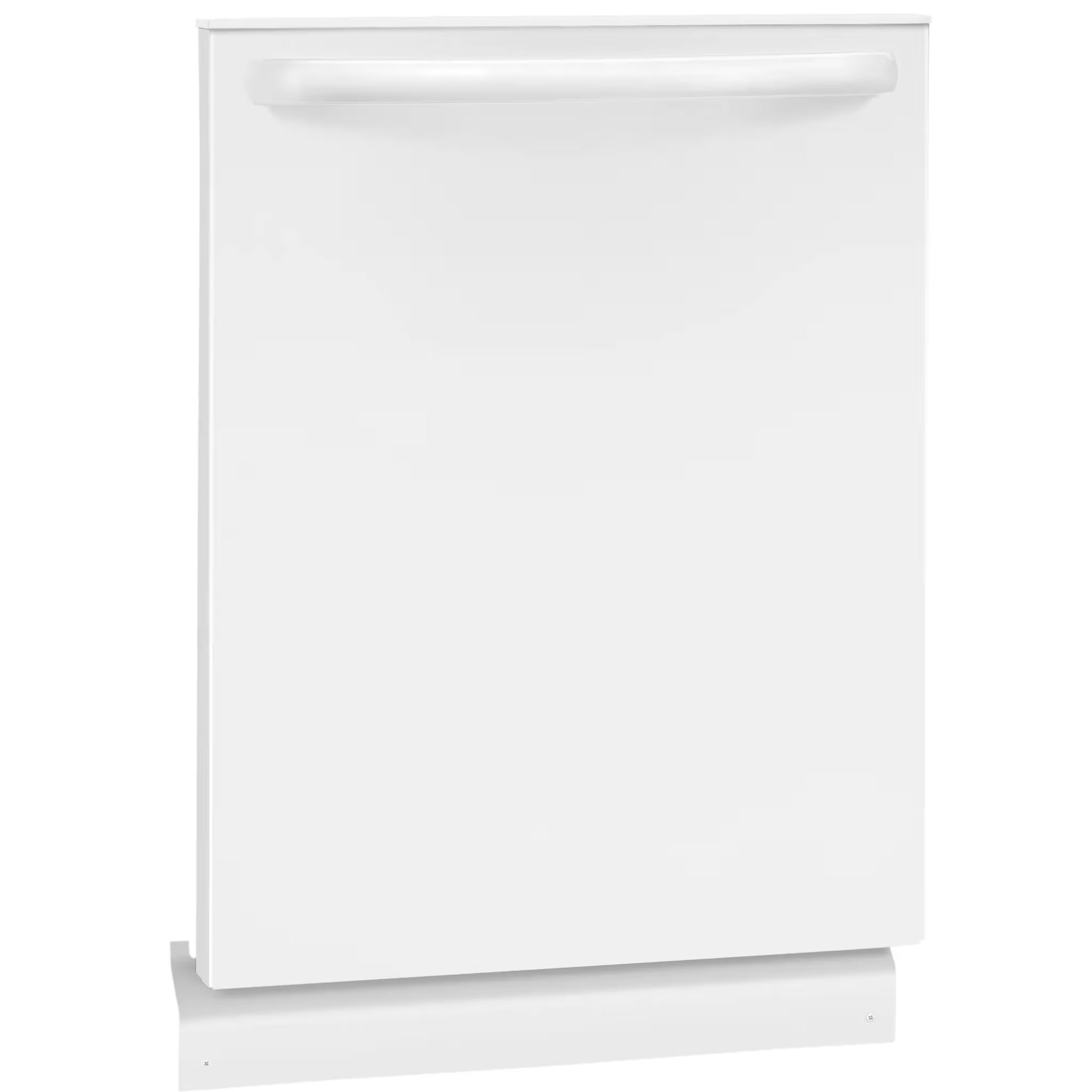

Frigidaire FDPH4316AW 24-Inch Built-In Dishwasher White

Bring powerful cleaning, enhanced drying and convenient everyday performance to your kitchen with the Frigidaire FDPH4316AW 24-inch built-in dishwasher. Its three spray arms provide extensive water coverage, while DishSense® Sensor Technology automatically adjusts cleaning performance based on the soil level of each load.

With capacity for up to 14 place settings, four wash cycles and multiple drying options, this dishwasher is equipped for daily cleanup and larger household loads. Quiet 52 dBA operation, concealed top controls, a StayPut door and a sleek bar handle add comfort and convenience.

Key Features

Triple the Cleaning Power

Three spray arms distribute water throughout the dishwasher, providing enhanced coverage across the upper and lower racks for a more effective clean.

DishSense® Sensor Technology

The smart soil sensor detects how dirty the dishes are and automatically adjusts cleaning performance to suit the load, helping reduce the need for pre-rinsing.

Enhanced Drying with MaxDry™

The MaxDry™ option raises the drying temperature to help reduce moisture left on dishes and minimise the need for towel drying.

NSF® Certified Sanitize Option

The Sanitize option removes 99.9% of common household bacteria and meets applicable NSF® testing standards.

60-Minute Quick Wash

Clean a complete load faster with the convenient 60-minute Quick Wash cycle.

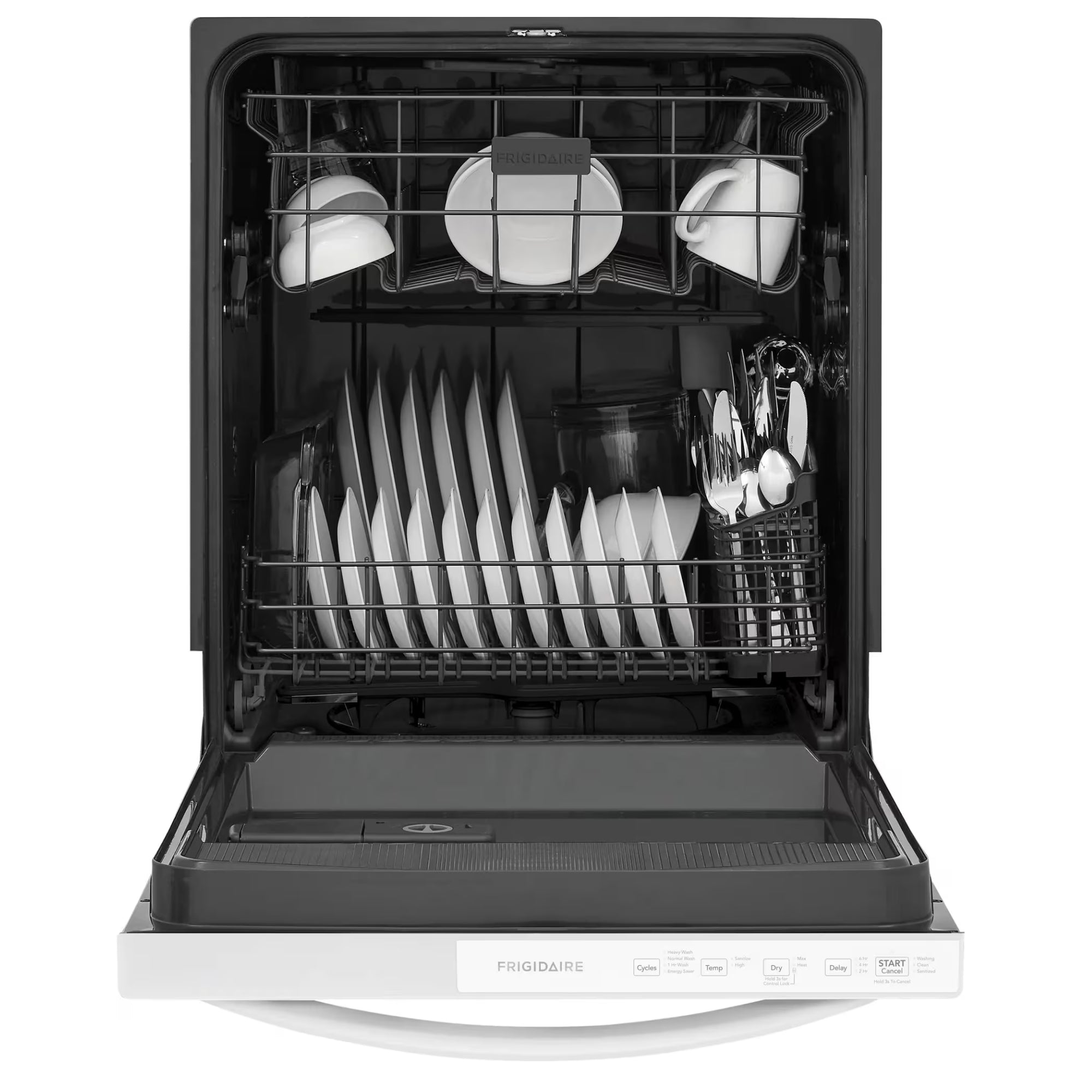

Fits Up to 14 Place Settings

The tall-tub interior accommodates up to 14 place settings, making it suitable for everyday meals, entertaining and larger household loads.

Quiet 52 dBA Operation

A noise-insulation system keeps dishwasher sound to 52 dBA for quieter operation in open-concept kitchens and nearby living spaces.

ENERGY STAR® Certified

ENERGY STAR® certification helps reduce energy consumption and operating costs compared with less-efficient dishwasher models.

Flexible Drying Options

Choose from Air Dry, Heated Dry or MaxDry™ to match the drying performance and energy use needed for each load.

Delay Start

Schedule the dishwasher to begin washing two, four or six hours later, allowing the cycle to run at a more convenient time.

StayPut Door

The door remains open at the selected angle, helping reduce sudden door movement, slamming and dishes shifting while loading or unloading.

100% Filtered Wash Water

The filtration system helps remove food particles from circulating wash water for cleaner performance throughout the cycle.

Removable Filter Trap

The removable filter trap provides convenient access for routine cleaning and maintenance.

Rinse Aid Dispenser and Indicator

The built-in rinse aid dispenser supports improved drying performance, while the indicator shows when additional rinse aid is needed.

Upper-Rack Cup Shelf

The convenient cup shelf provides additional space for cups, smaller items and selected stemware in the upper rack.

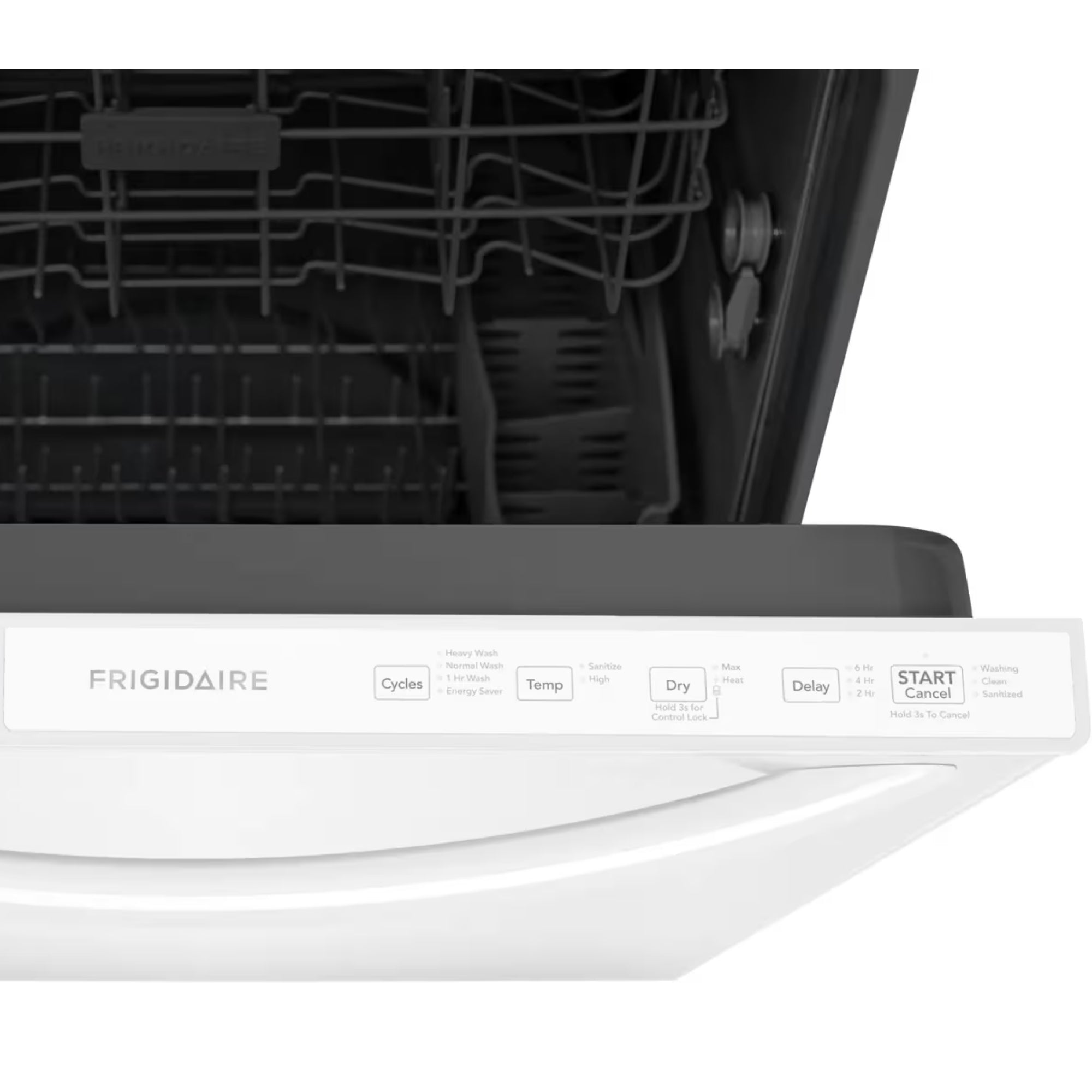

Hidden Top Controls

Top-mounted controls remain concealed when the dishwasher door is closed, creating a clean and streamlined exterior.

Control Lock

Lock the controls to help prevent accidental setting changes or unintended operation.

Bar Handle Design

The sleek bar handle adds a refined finishing touch and provides a comfortable grip when opening the dishwasher.

Dishwasher Specifications

• Installation type: Built-in
• Place-setting capacity: 14
• Wash levels: 5
• Wash system: Direct Feed
• Filtered wash water: 100%
• Filtration system: Yes
• Filter material: Plastic
• Filter trap: Removable
• Smart soil sensor: Yes
• Motor speed: Single-speed
• Detergent dispenser: Yes
• Rinse aid dispenser: Yes
• Tub design: Tall tub
• Tub material: Plastic
• Tub colour: Midnight Ink
• Water usage: 3.2 gallons per cycle
• Maximum water pressure: 120 psi

Wash System

• Upper spray system: Spray arm
• Middle spray arm: Bi-beam
• Lower spray arm: Bi-beam
• Total spray arms: 3

Wash Cycles

• Energy Saver
• Heavy Wash
• Normal Wash
• 60-Minute Quick Wash

Dishwasher Options

• Air Dry
• Heated Dry
• MaxDry™
• High-Temperature Wash
• NSF® Certified Sanitize
• Two-, Four- or Six-Hour Delay Start
• Start/Cancel
• Control Lock

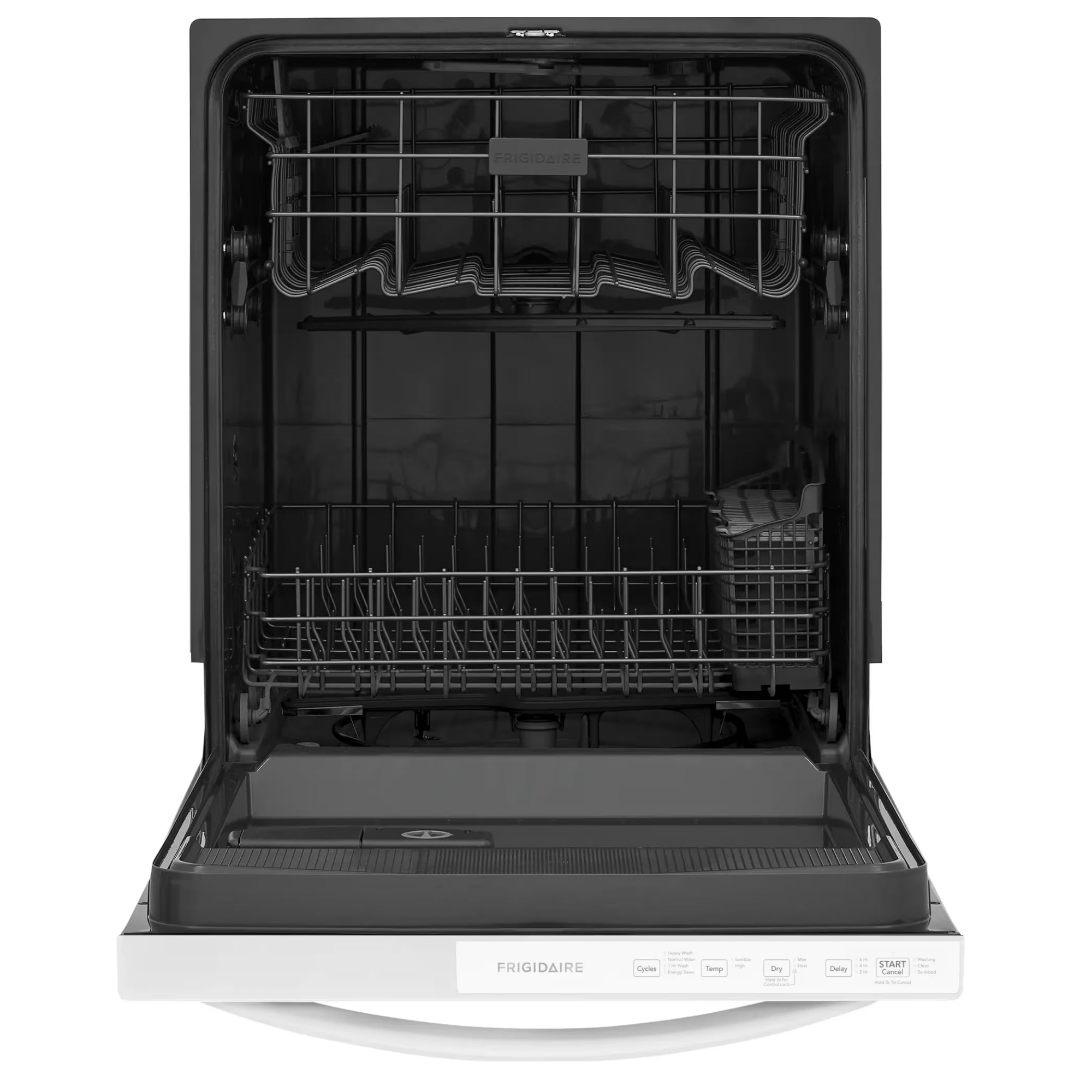

Rack Specifications

Upper Rack

• Rack type: Standard
• Rack coating: PVC
• Minimum height clearance: 8"
• Cup shelf: Yes
• Rack spacer: Yes

Lower Rack

• Rack type: Standard
• Rack coating: PVC
• Minimum height clearance: 11"
• Maximum height clearance: 13"
• Silverware baskets: 1
• Silverware basket lids: 3

Controls

• Control location: Top
• Control lock: Yes
• Delay Start: 2, 4 or 6 hours
• Digital display: No
• Rinse aid indicator: Yes

Drying System

• Drying system: Static vent
• Air Dry: Yes
• Heated Dry: Yes
• MaxDry™: Yes

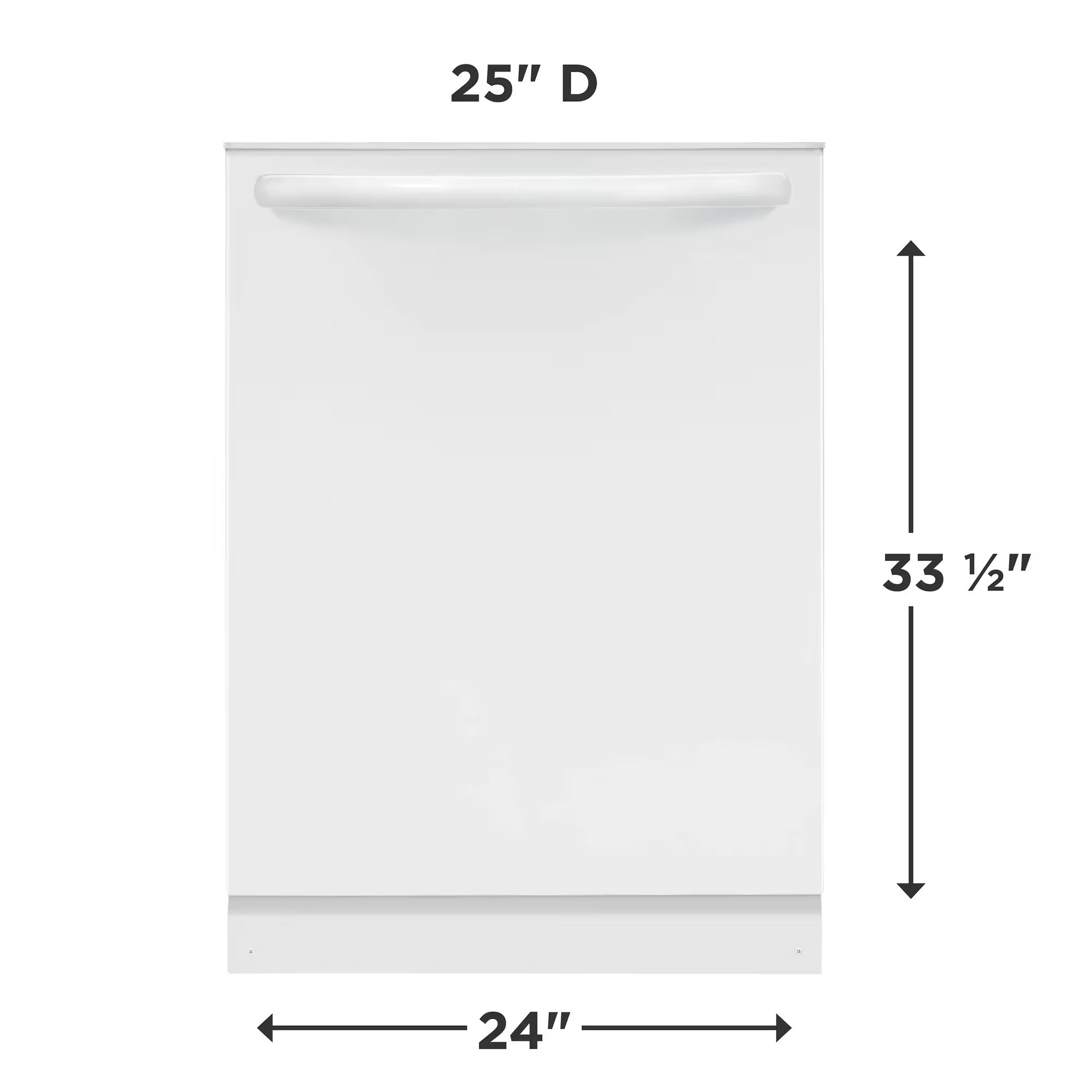

Dimensions

• Width: 24"
• Depth: 25"
• Depth with door open: 49 1/4"
• Minimum height: 33 1/2"
• Maximum height: 35"

Recommended Cutout Dimensions

• Cutout width: 24"
• Cutout depth: 25"
• Cutout height: 35"

Electrical Specifications

• Voltage: 120 V
• Amperage at 120 V: 10 amps
• Connected load at 120 V: 1.2 kW
• Annual energy consumption: 240 kWh

Installation Specifications

• Connection location: Bottom right
• Water inlet location: Bottom left front
• Levelling legs: 4

Exterior Specifications

• Finish: White
• Door type: StayPut
• Handle design: Bar handle
• Door latch: Pull latch
• Stay-put door: Yes

Certifications and Additional Specifications

• Sound level: 52 dBA
• CEE tier: Tier 1
• ENERGY STAR® certified: Yes
• NSF® certified: Yes
• UL listed: Yes
• cUL listed: Yes
• Meets ASSE 1006 requirements: Yes
• Product weight: 56 lb.
• Shipping weight: 62 lb.
• Country of origin: United States
• Parts warranty: 1 year
• Labour warranty: 1 year
• Right to repair: Partially available

Product Identification

• Brand: Frigidaire
• Product line: Dishwasher
• Model: FDPH4316AW
• UPC: 012505116209
• GTIN: 00012505116209
