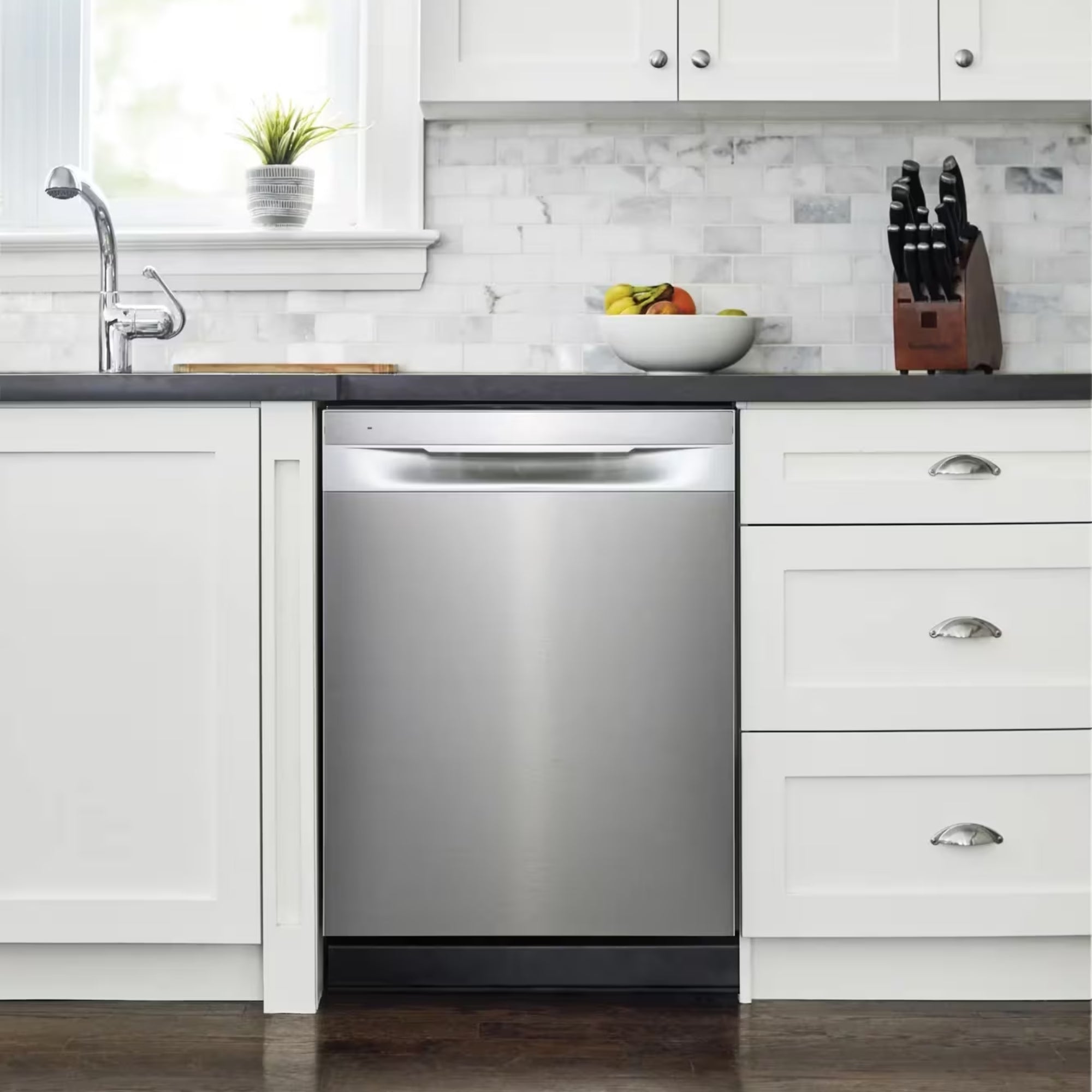

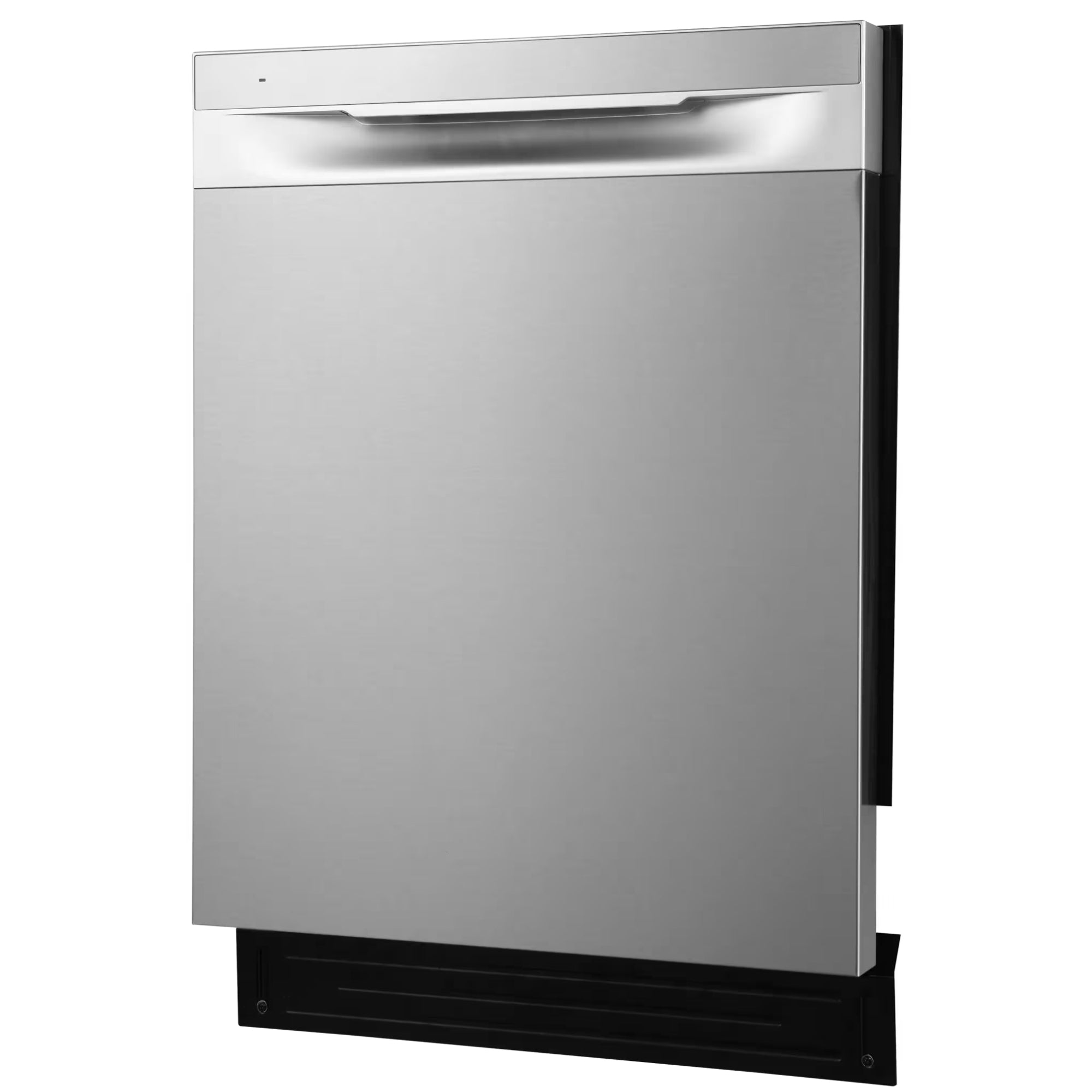

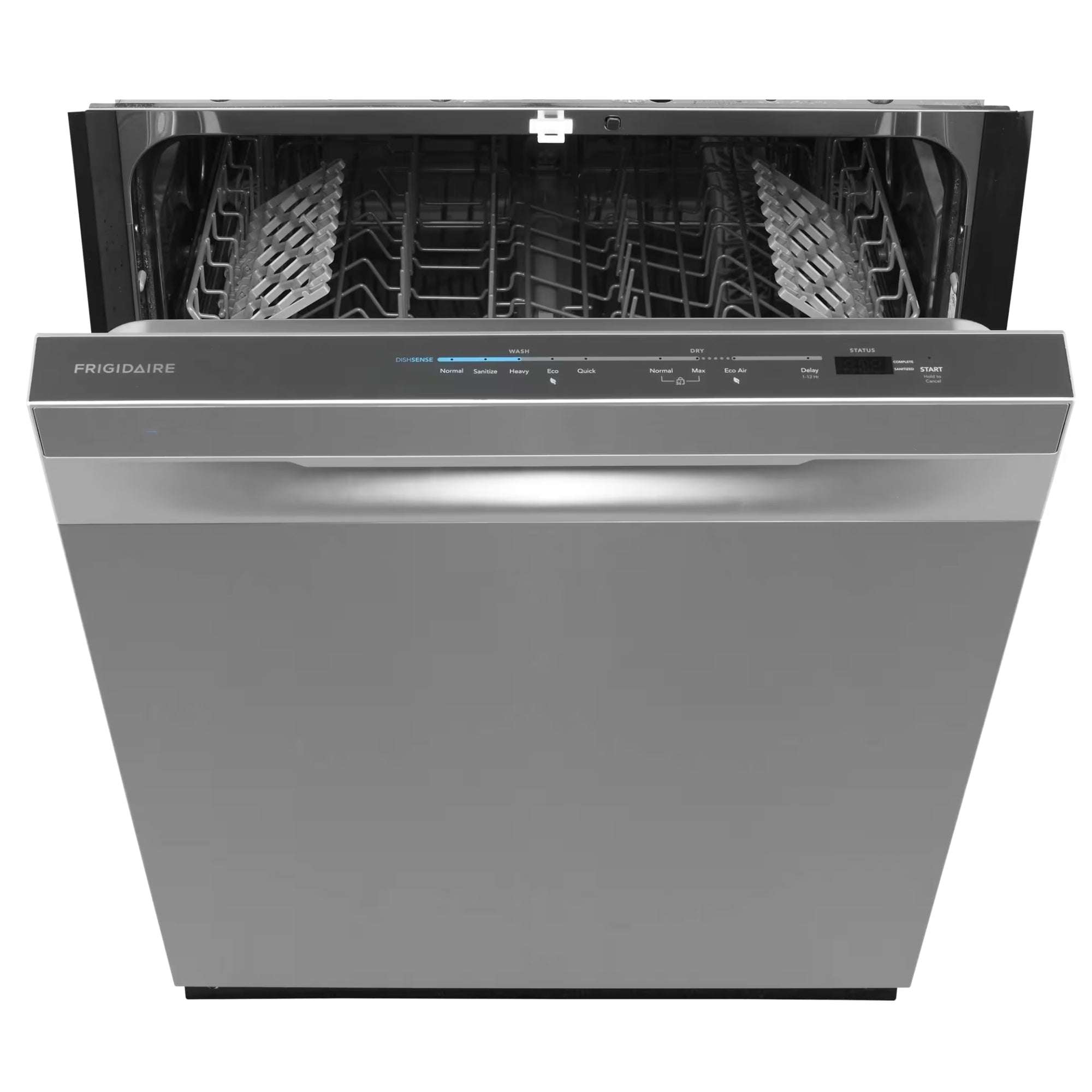

Frigidaire FDHP4336AS 24-Inch Built-In Dishwasher with Eco Air Dry Stainless Steel

Upgrade everyday cleanup with the Frigidaire FDHP4336AS 24-inch built-in dishwasher. Its premium hybrid tub features five stainless steel sides for enhanced durability, a refined interior appearance and improved resistance to staining.

DishSense® Sensor Technology automatically adjusts cleaning performance based on the soil level of each load, while five wash cycles provide flexibility for everything from daily dishes to heavily soiled cookware. Eco Air Dry, quiet 49 dBA operation, fully integrated top controls and built-in leak detection add convenience and peace of mind.

Key Features

Premium Hybrid Tub Design

The hybrid tub features five stainless steel sides for a premium interior appearance, improved stain resistance and dependable durability.

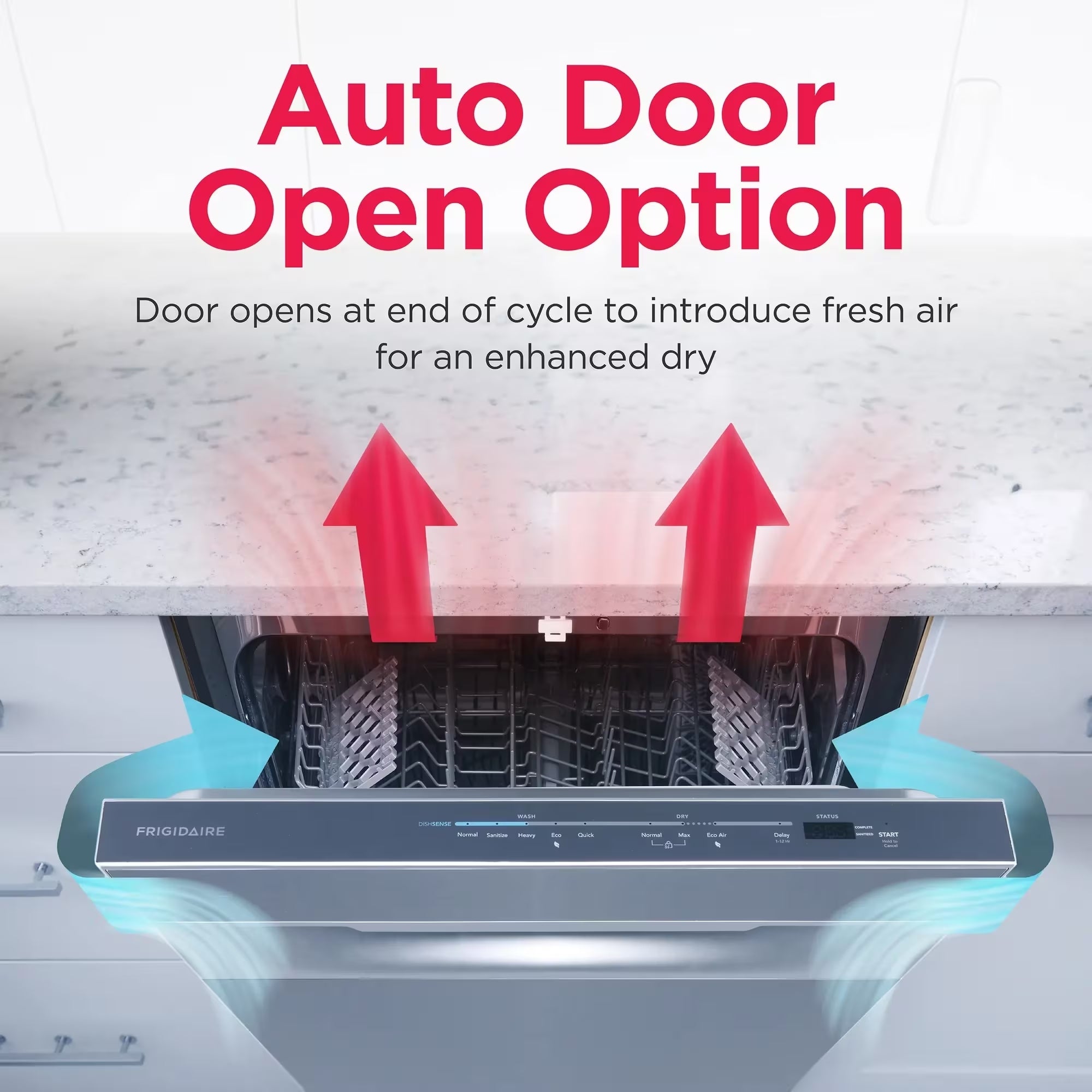

Eco Air Dry

At the end of the final rinse, the Eco Air Dry function props the dishwasher door open to introduce fresh air and improve drying performance.

DishSense® Sensor Technology

The smart soil sensor detects how dirty the dishes are and automatically adjusts cleaning performance, helping reduce the need for pre-rinsing.

Five Convenient Wash Cycles

Choose from Heavy, Normal, Energy Saver, Quick and Sanitize cycles to match different dishwashing needs.

60-Minute Quick Wash

Get a complete wash and dry in approximately 60 minutes with the convenient Quick Wash cycle.

NSF® Certified Sanitize Cycle

The Sanitize cycle removes 99.9% of common household bacteria and meets applicable NSF® testing standards.

Quiet 49 dBA Operation

Run the dishwasher with minimal disruption thanks to quiet 49 dBA operation, making it suitable for open-concept kitchens and nearby living areas.

Front-Facing Status Indicator

A front-facing indicator light lets you know when the dishwasher is operating and when the cycle is finished.

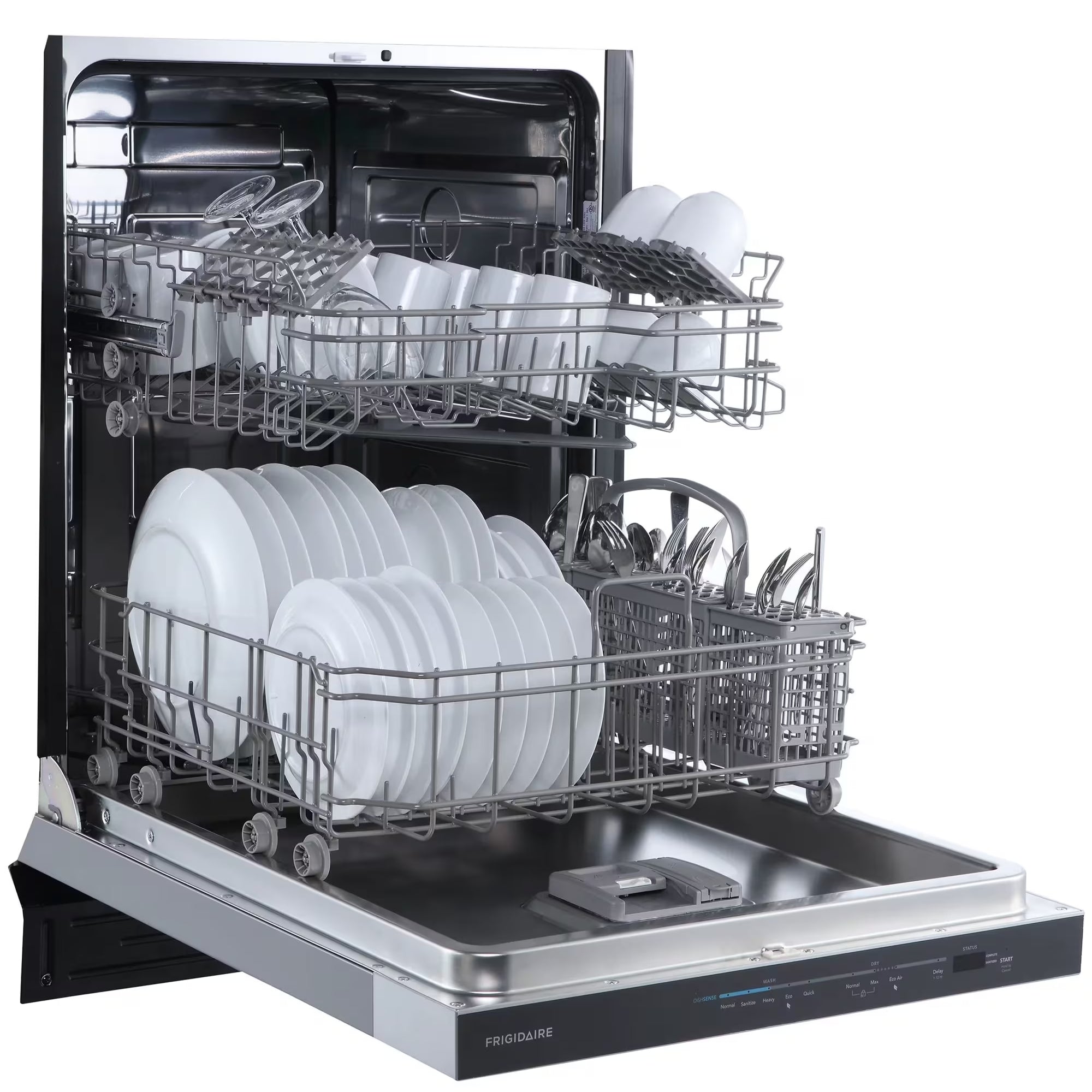

Cleans Up to 12 Place Settings

The tall-tub interior accommodates up to 12 place settings in one cycle for convenient everyday cleanup.

Leak Detection System

If a leak is detected, a sensor stops the cycle and helps contain overflowed water in a tray at the bottom of the dishwasher.

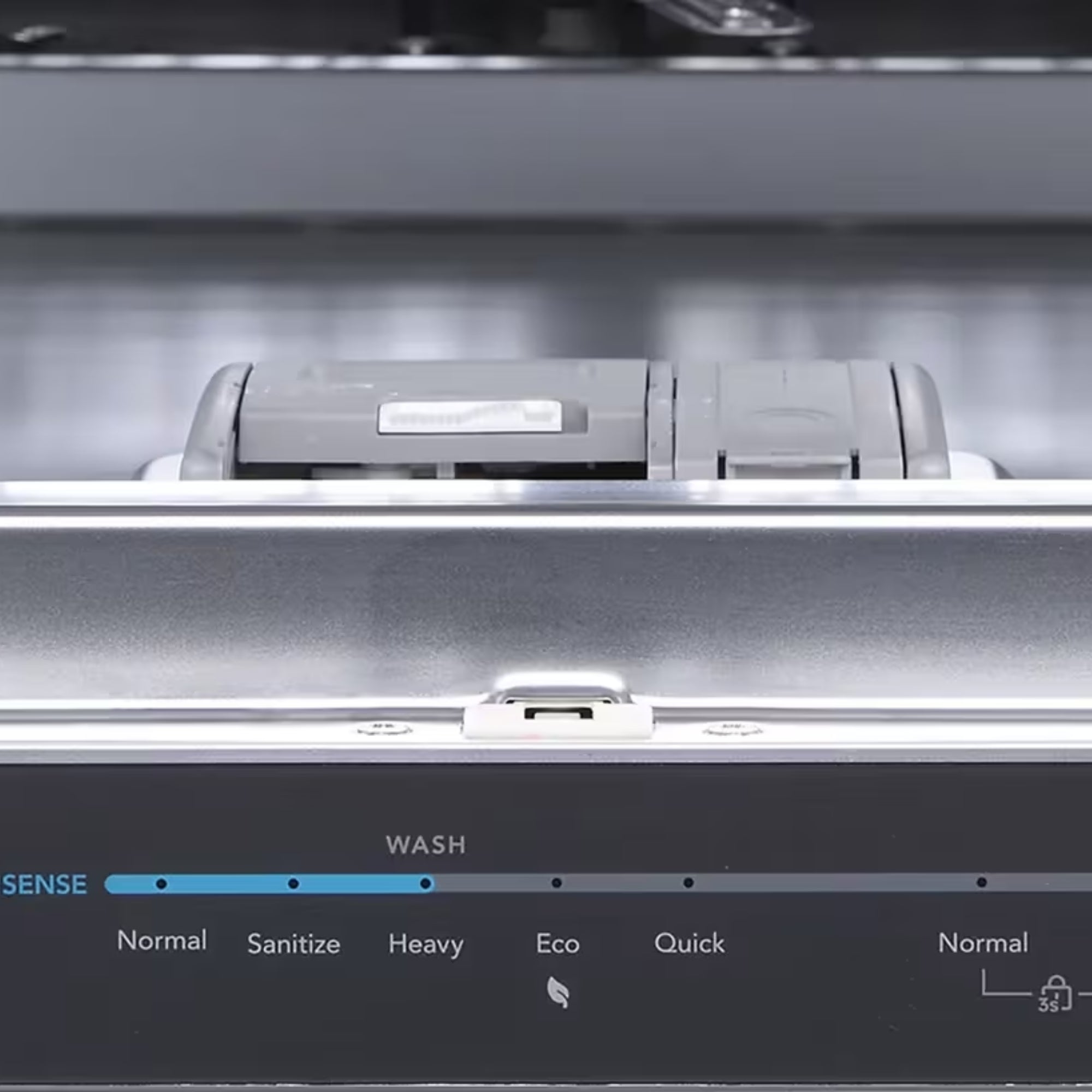

Fully Integrated Top Controls

Top-mounted controls remain concealed when the door is closed, creating a clean and seamless exterior.

Digital Display

The integrated digital display provides clear access to cycle information and dishwasher settings.

12-Hour Delay Start

Schedule the dishwasher to begin washing from one to 12 hours later, allowing the cycle to run at a more convenient time.

Fold-Down Lower-Rack Tines

Fold-down tines in the lower rack provide additional flexibility when loading larger dishes, bowls and cookware.

100% Filtered Wash Water

The filtration system helps remove food particles from circulating wash water to support cleaner performance throughout the cycle.

Removable Stainless Steel Filter

The removable stainless steel filter provides convenient access for routine cleaning and maintenance.

Heated Dry

The Heated Dry option adds heat during the drying stage to help reduce moisture remaining on dishes.

ENERGY STAR® Certified

ENERGY STAR® certification helps reduce energy consumption and operating costs compared with less-efficient dishwasher models.

Wide Pocket Handle

The integrated wide pocket handle provides a comfortable grip while maintaining a clean and streamlined appearance.

Dishwasher Specifications

• Installation type: Built-in
• Place-setting capacity: 12
• Wash levels: 3
• Wash system: Direct Feed
• Filtered wash water: 100%
• Filtration system: Yes
• Filter material: Stainless steel
• Filter trap: Removable
• Smart soil sensor: Yes
• Leak detection system: Yes
• Motor speed: Single-speed
• Detergent dispenser: Yes
• Rinse aid dispenser: Yes
• Interior light: No
• Tub design: Tall tub
• Tub material: Hybrid
• Tub colour: Stainless steel
• Water usage: 3.2 gallons per cycle
• Maximum water pressure: 120 psi

Wash System

• Middle spray arm: Bi-beam
• Lower spray arm: Bi-beam
• Wash levels: 3

Wash Cycles

• Energy Saver
• Heavy Wash
• Normal Wash
• 60-Minute Quick Wash
• Sanitize

Dishwasher Options

• Eco Air Dry
• Heated Dry
• NSF® Certified Sanitize
• One- to 12-Hour Delay Start

Drying System

• Eco Air Dry: Yes
• Automatic door opening: Yes, at the end of the final rinse
• Heated Dry: Yes

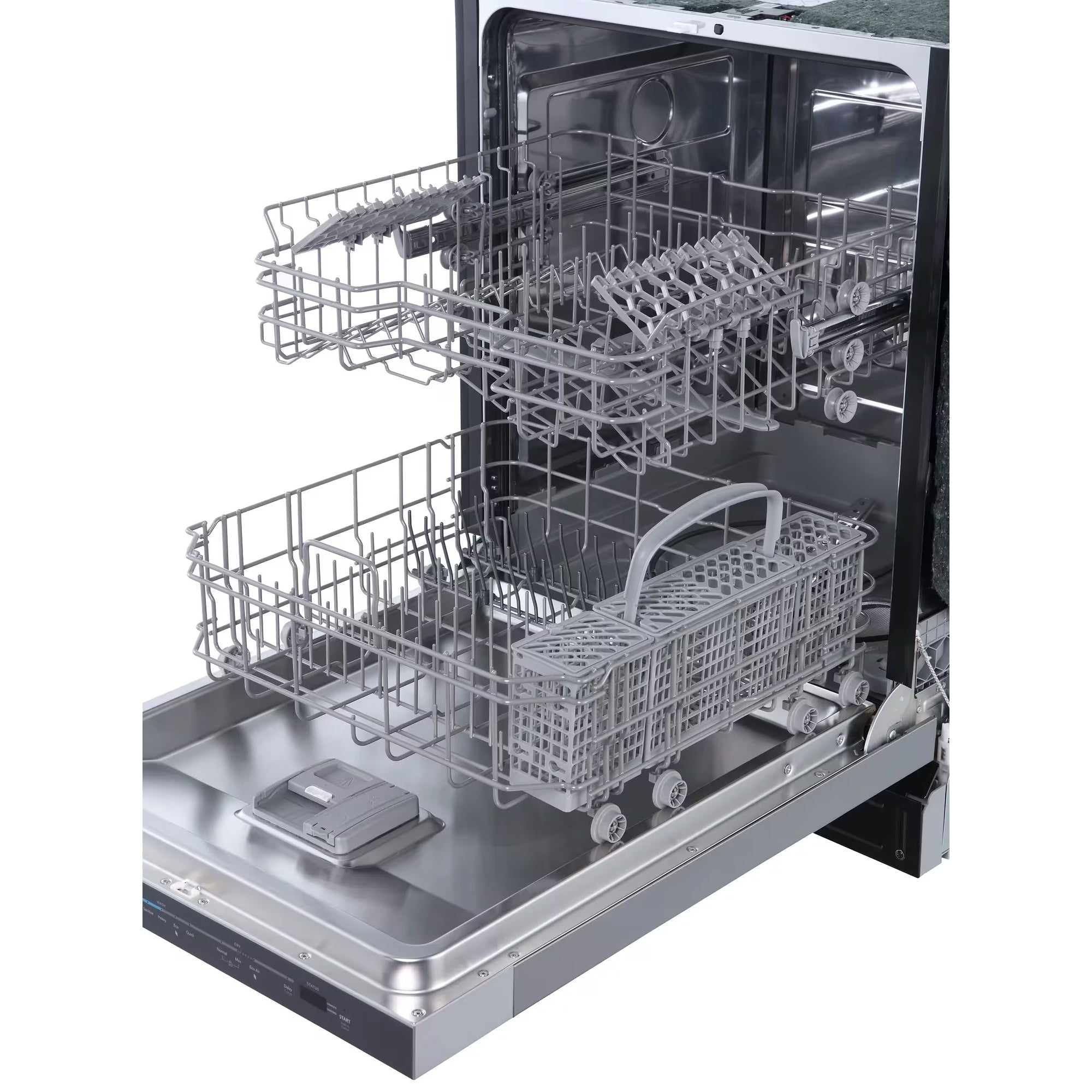

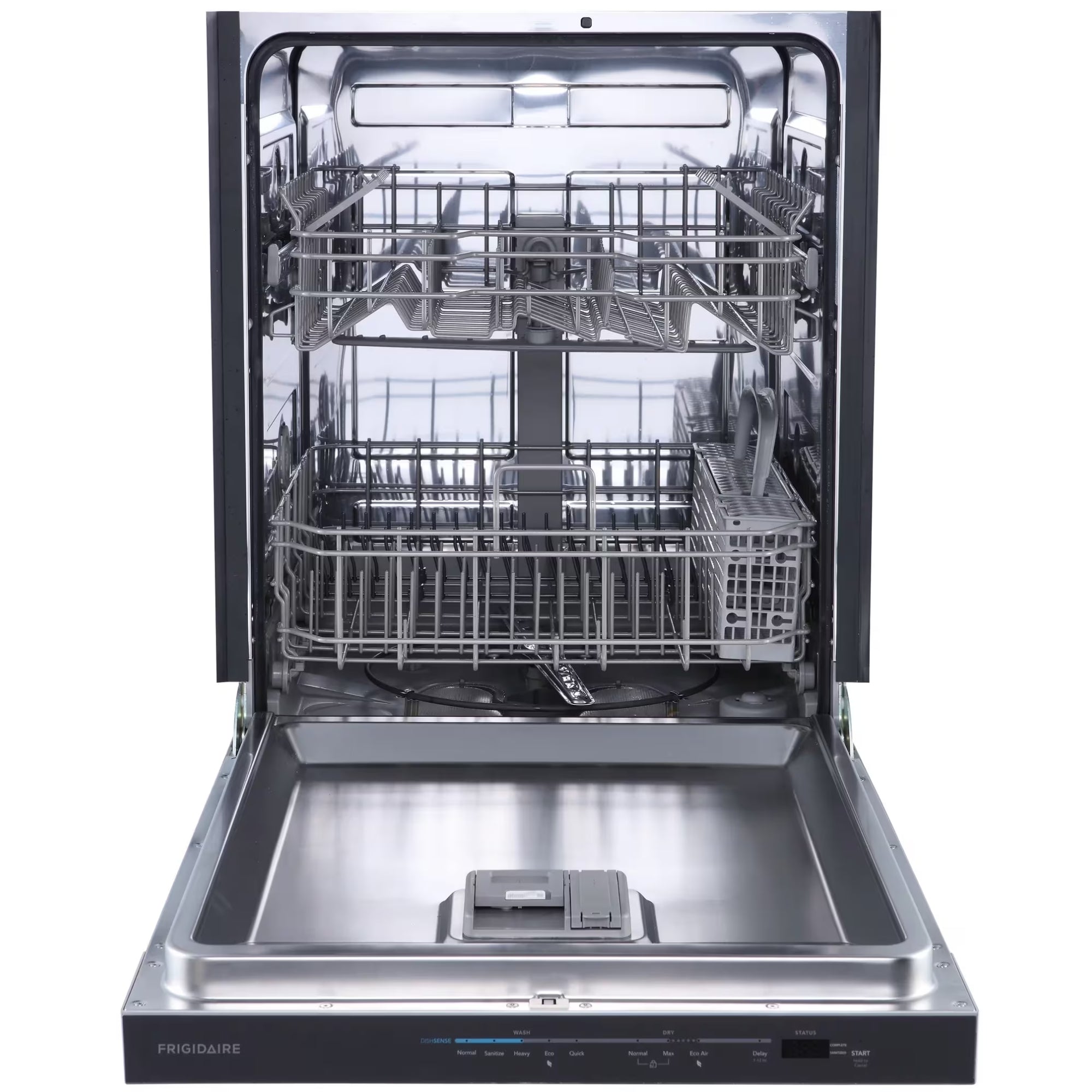

Rack Specifications

Upper Rack

• Rack type: Standard
• Rack coating: Nylon
• Maximum height clearance: Approximately 10 5/8"
• Fold-down tines: No

Lower Rack

• Rack type: Standard
• Rack coating: Nylon
• Minimum height clearance: Approximately 12 3/5"
• Fold-down tines: Yes
• Silverware baskets: 1

Controls

• Control location: Top
• Control configuration: Fully integrated
• Digital display: Yes
• Delay Start: 1 to 12 hours
• Front-facing status indicator: Yes
• Floor beam indicator: No

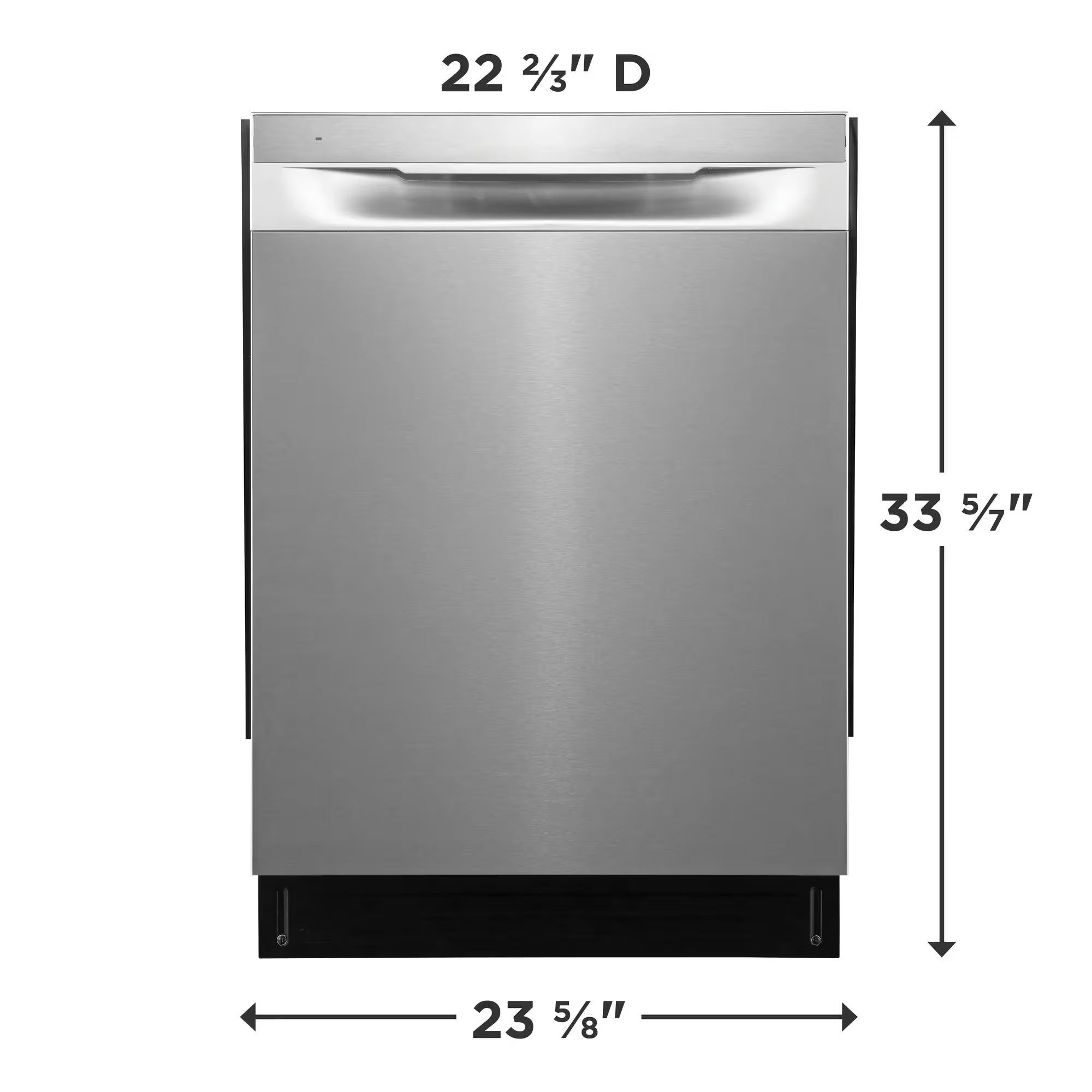

Dimensions

• Width: 23 5/8"
• Depth: 22 11/16"
• Depth with door open: 46 3/4"
• Minimum height: Approximately 33 7/10"
• Maximum height: 35"

Recommended Cutout Dimensions

• Cutout width: 24"
• Cutout depth: 25"
• Cutout height: 35"

Electrical Specifications

• Voltage: 120 V
• Amperage at 120 V: 7.8 amps
• Annual energy consumption: 240 kWh

Installation Specifications

• Levelling legs: 3

Exterior Specifications

• Finish: Stainless steel
• Handle design: Wide pocket handle
• Door type: Standard
• Door latch: Pull latch

Certifications and Additional Specifications

• Sound level: 49 dBA
• CEE tier: Tier 1
• ENERGY STAR® certified: Yes
• NSF® certified: Yes
• UL listed: Yes
• cUL listed: Yes
• ETL listed: Yes
• Meets ASSE 1006 requirements: Yes
• Product weight: 73 lb.
• Shipping weight: 84 lb.
• Country of origin: Egypt
• Prop 65 label: Yes
• Parts warranty: 1 year
• Labour warranty: 1 year
• Right to repair: Partially available

Product Identification

• Brand: Frigidaire
• Product line: Dishwasher
• Model: FDHP4336AS
• UPC: 012505116537
• GTIN: 00012505116537
